Product Name: PT-GD140G Precise Electric Translating Platform

Share
Specification:

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.


1  High precise ball screw provides high-performance


2   Low bearing capacity and a proper travel range were required for this model because of the type of linear ball bearing.


3  XY, XZ and XYZ stages can be stacked by 2 or 3 pieces of this model.


4   Original position and limit switches at both ends which can supply the precision positioning and protection

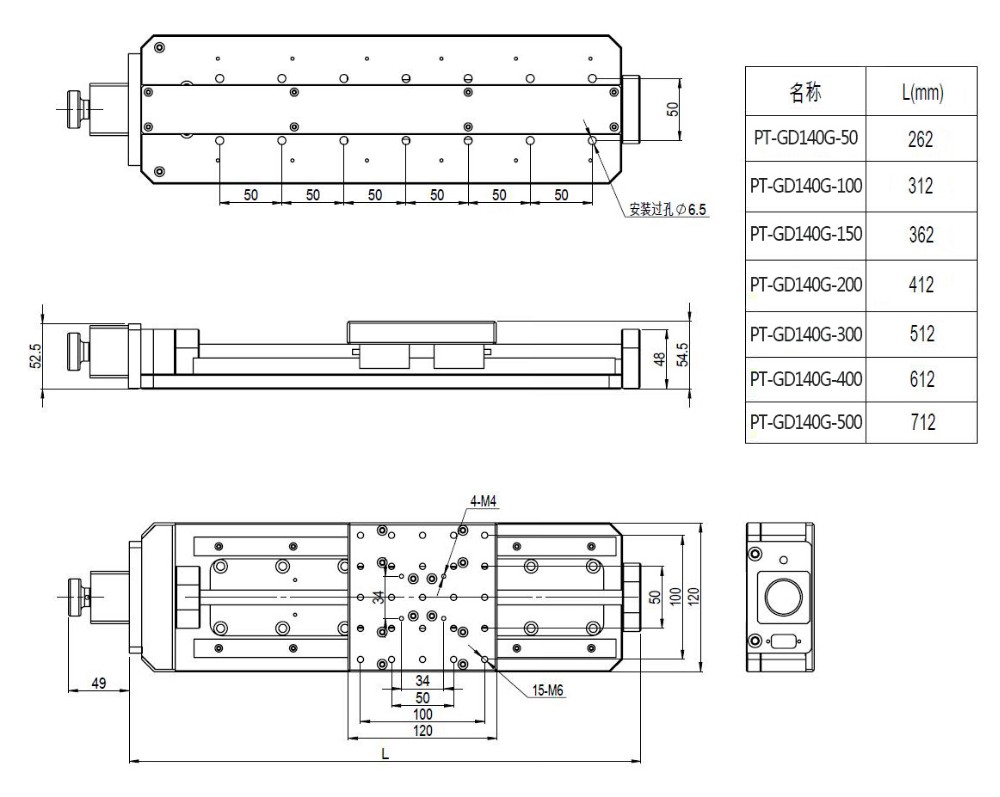

Model NumberPT-GD140G-50PT-GD140G-100PT-GD140G-150PT-GD140G-200PT-GD140G-300PT-GD140G-400PT-GD140G-500
StructureTravel Range(mm)50100150200300400500
Platform(mm)120x120120x120120x120120x120120x120160x160160x160
Screw SpecificationsPrecise Ball Screw (4mm of guide)Ball Screw (5mm of guide)
Travel GuideHigh Precision Linear Slide Rail
Stepper Motor42(1.8°)57(1.8°)
MaterialAluminum Alloy
Surface PreparationBlack-Anodized
Load Capacity(Kg)3050
Weight(Kg)2.83.44.55.26.37.28.3
Accuracy8 Subdivision Resolution(μm)2.53.125
Max Velocity20mm/sec40mm/sec50mm/sec
Repeatability(μm)5
Absolute Accuracy(μm)8
Straightness(μm)568
Moving Parallelism(μm)101520
Pitching25"50"60"
Yawing20"25"30"
Backlash(μm)2
Lost Motion(μm)35
 AccessoryInstalling Braking Function (Optional)
Installing Grating Ruler (Optional)
Reloading Servo Motor (Optional)
Installing Dirt Shroud (Optional)

PT-GD140G Precise Electric Translating Platform


Product details:
Advantage:

precision motorized tranlation stages,extensively application: institute, industry ,research precison experiment,postion and processing fields

The products can be produced according to your needs if it don't meet your need.
