Product parameters:

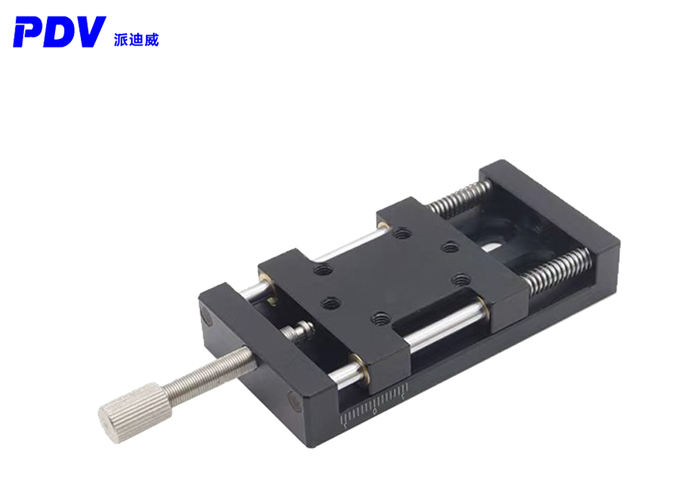

Model: PT120-25-53
Table Size: 65×65 mm
Actuator Type: Micrometer Head Type
Micrometer Head Position: Centre
Travel Distance: ±12.5mm
Minimum Readout (Resolution): 10μm
Minimum Adjust Distance: 2μm
Positional Accuracy: 5μm
Travel Guide: Ball Bearing Rolling Steel Rods
Load Capacity (Horizontally): 8kg
Straightness: 20μm
Pitching: 80″
Yawing: 60″
Parallelism: 30μm
Driving Parallelism: 30μm
Weight: 0.35kg
Material: Aluminum Alloy
Finish(Surface Treatment): Black-anodized
Product size:
