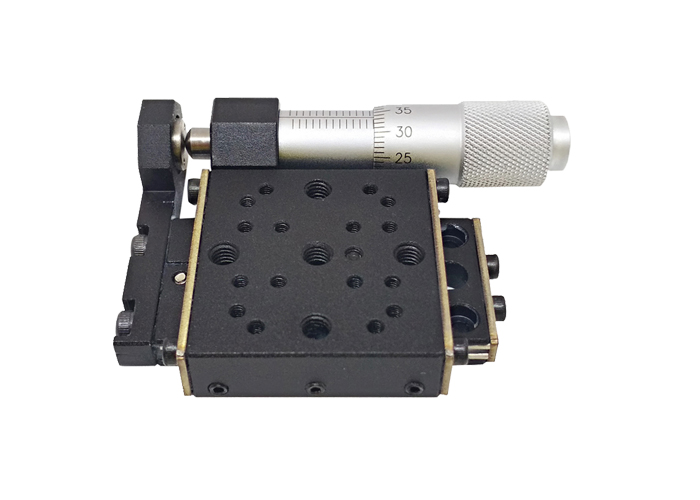

Item Number: PP110-13-34C
Travel Range: 13mm
Actuator Type: Micrometer Head in Center
Travel Guide: Crossed Roller Bearing

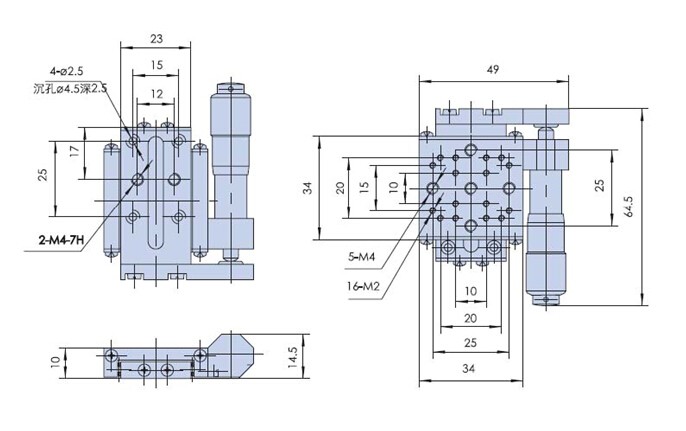

Platform: 34mm × 34mm
Parallelism: 30μm
Straightness: 20μm
Driving Parallelism:30μm
Scale: 10μm
Positional Accuracy: 5μm
Adjust Distance: 2μm/0.1μm
Pitching: 80”
Yawing: 60″
Material – Finish: Aluminum Alloy - Black-Anodized
Load capacity: 2Kgs
Weight: 0.07kgs
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
