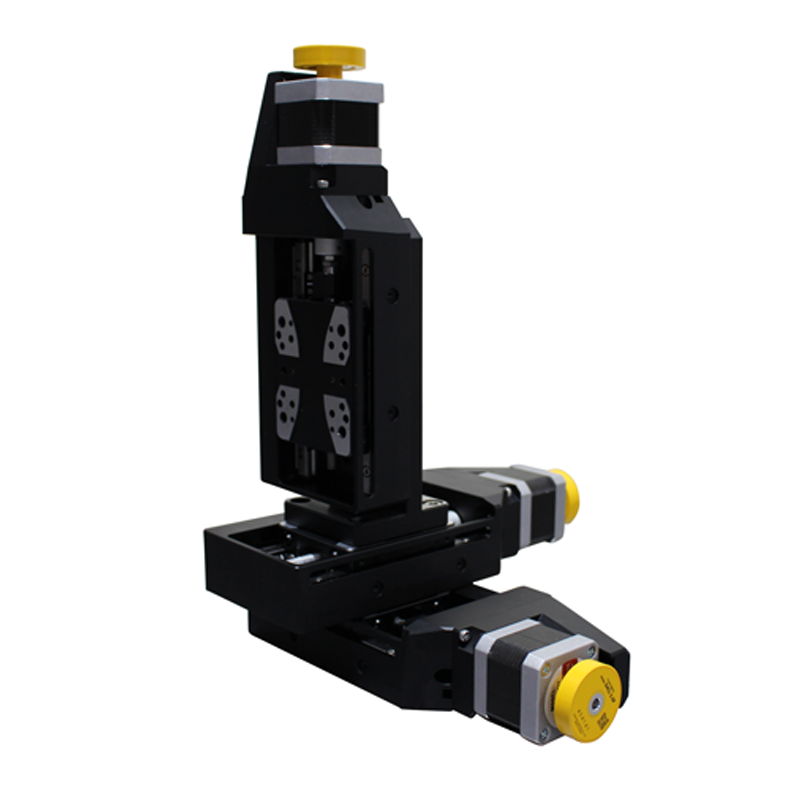

Precision grinding linear sliding table
Application fields: automatic focusing, laser cutting, research, biotechnology, automation, optical alignment.
Compact design, load up to 10 kg.
The stroke is 25, 50 and 100 mm, and three options are available.
The repetition accuracy is ±0.5um, and the step size is 1um.
The cross roller guide rail with anti-creep system brings high motion accuracy and load capacity.
Precision ball screw, compact design with pitch of 1 mm.
Stress relieving aluminum base can achieve high stability.
Non-contact optical limit switch.
Non-contact optical reference point switch with directional induction at the midpoint of travel.
2-phase stepping motor can realize low speed and high resolution.
Without encoder (open loop)
