Model | PTL-S100 | |
Parameter description | Double table | 90*110 |
Direction of motion | Left and right tensile displacement | |
Electric machinery | 42 stepper motor | |
Left and right travel | 50mm | |
Lead screw | 1.5mm | |
Design resolution | 0.125μm | |
Motion parallelism | ＜15μm | |
Repeat positioning accuracy | ＜10μm | |
Motion straightness | ＜12μm | |
Limit type | Hall Sensor | |
Top speed | ≤5mm/sec | |
Load | 5kg | |
| weight | 2.72kg | |
Product features:
※ the product structure is small and light, suitable for light load, low-speed use and scientific test.
※ high quality fine grinding lead screw drive, small lead, the same fine fraction can achieve high resolution.
※ the ingenious structural design of air elimination check nut can minimize the clearance of grinding lead screw pair.
※ the guide rail adopts cross roller guide rail, which is comfortable to move. It has the function of laterally adjusting the guide rail preload and eliminating clearance, and can be used in multi-dimensional combination.
※ zero and limit switches are installed at both ends to facilitate accurate positioning and protection of products.

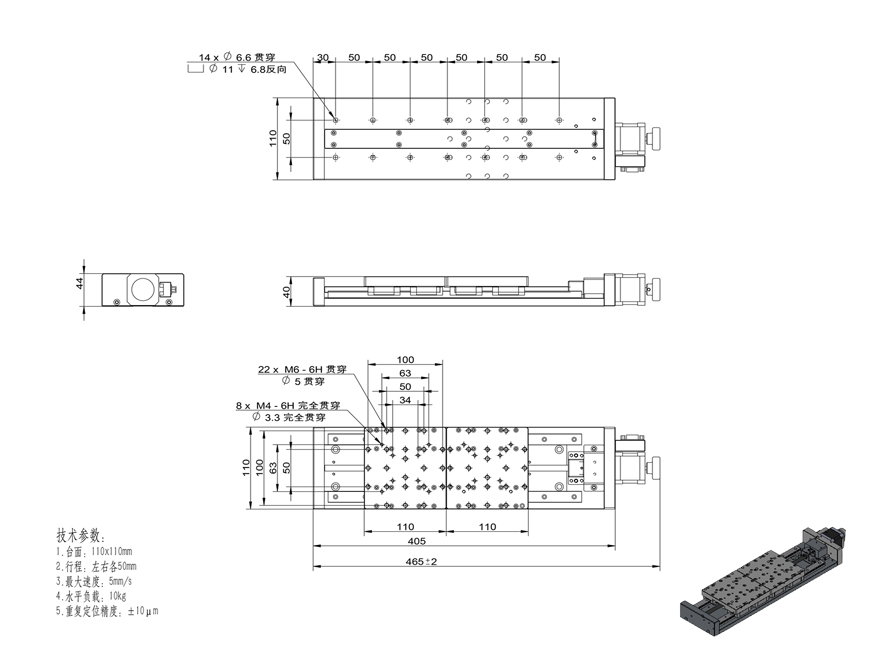

Product dimension drawing:
We are glad you can cooperate with us. In order to save your time, please check the parameters or communicate with our sales department when selecting products, so as to avoid delaying your construction schedule due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
