Product Description
Double cemented achromatic lens consists of a positive lens with low refractive index (Crown glass) and a negative lens with high refractive index (flint glass). After computer optimization design, paraxial aberrations such as spherical aberration, coma aberration and chromatic aberration have been well corrected. When used for focusing collimation, convex lens or surface with small curvature radius usually faces collimated light. When used for imaging, the convex lens faces the side with longer object distance or image distance.

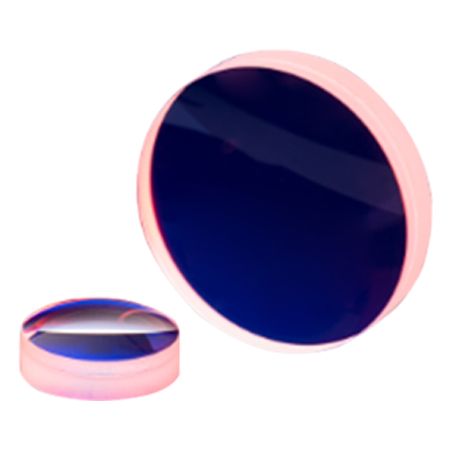

XSC-661 Double Glued Achromatic Lens
Double cemented achromatic lens consists of a positive lens with low refractive index (Crown glass) and a negative lens with high refractive index (flint glass). After computer optimization design, paraxial aberrations such as spherical aberration, coma aberration and chromatic aberration have been well corrected. When used for focusing collimation, convex lens or surface with small curvature radius usually faces collimated light. When used for imaging, the convex lens faces the side with longer object distance or image distance.
This series of products are coated with single-layer MgF2 antireflection film.
There is no requirement for damage threshold.
XSC-650 Double Glued Lens with Metal Frame
This series of achromatic double cemented lenses consists of a positive lens with low refractive index (Crown glass) and a negative lens with high refractive index (flint glass). The lens is pre-installed in the frame with external thread of 1.035 "-40 (SM1) with external diameter of 30mm, which can be compatible with SM1 threaded frame or 30 mm coaxial lens barrel series. The lens frame is marked with the lens type, focal length and coating range of antireflection film.
After computer optimization design, the spherical aberration, coma aberration and chromatic aberration of the double cemented lens are well corrected, and the surface is coated with MgF2 antireflection film. When used to focus collimated light, the convex lens or the surface with small radius of curvature faces the collimated light, and when used for imaging, the convex lens must face the side with longer object distance or image distance.
Lens coating: single layer MgF2
Mounting thread: 1.035 "-40 (SM1)
Optical aperture: φ23
XSC-650 φ 30 double cemented achromatic lens with frame
The lens is pre-installed in a metal frame with an outer diameter of φ30mm, and there is no external thread;
The lens eccentricity has been fixed with glue, and the eccentricity C is ≤ 0.04 mm;
Outer diameter φ30mm;The thickness of the lens frame is 10mm, 15mm and 20mm to choose from;
The lens type and focal length are marked on the frame.
