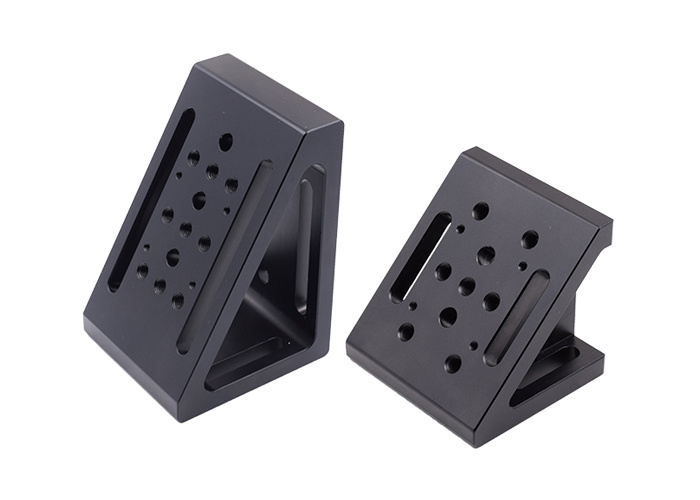

The angle adapter bracket is an integrated high-quality aluminum alloy structure with a triangular cross-section, which has high strength and stability. It is used for the combined installation of mechanical components such as optical fixed plates and mobile platforms.
The material is high-quality aluminum alloy
Integrated molding with high strength and stability
The countertop has an array of threaded holes for easy installation of optical and mechanical components. The bottom has through holes and slots, and M6 screws can be removed

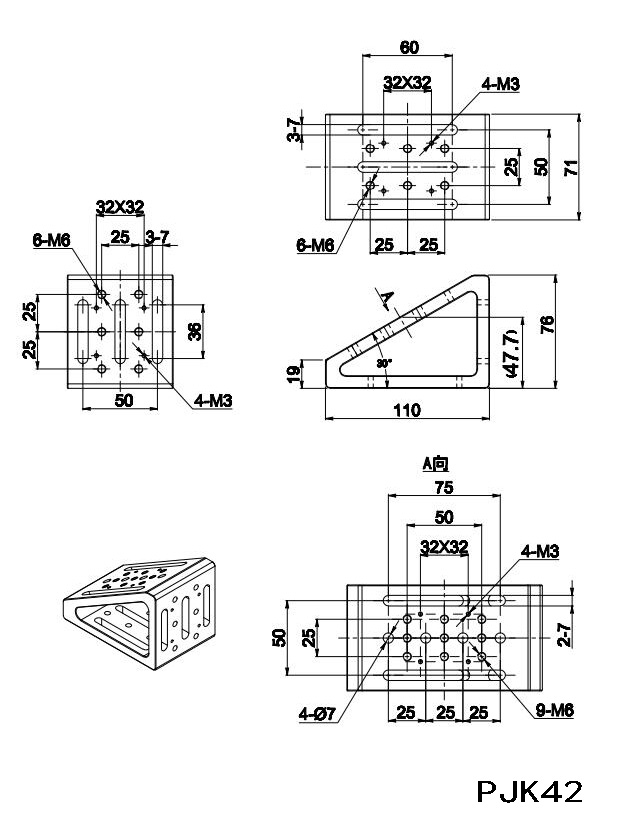

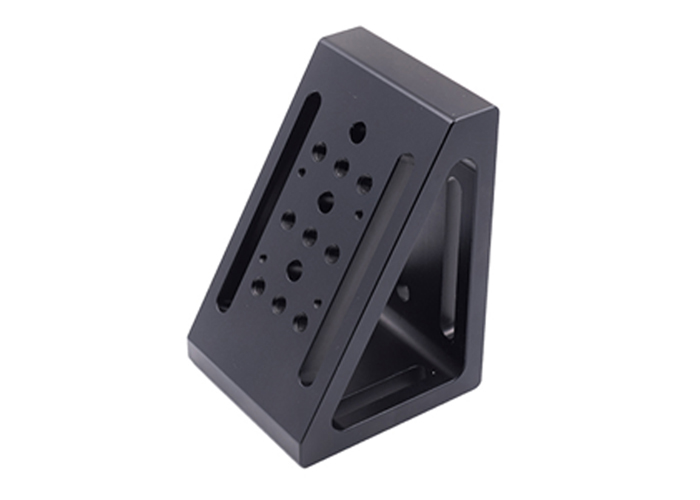

The angle between the PJK42 slope and the bottom is 30 ° or 60 °

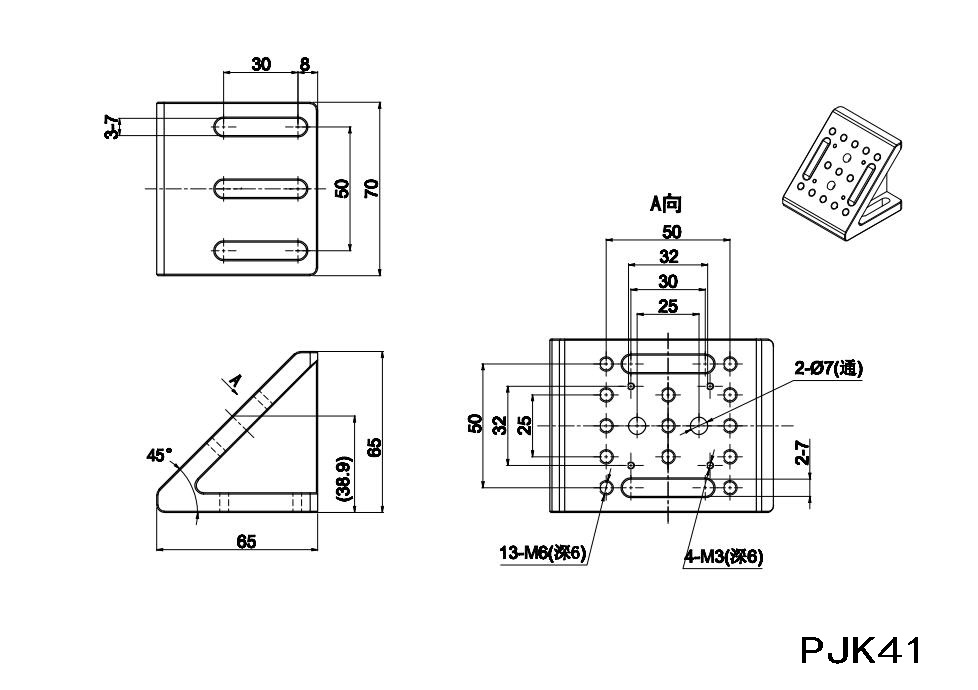

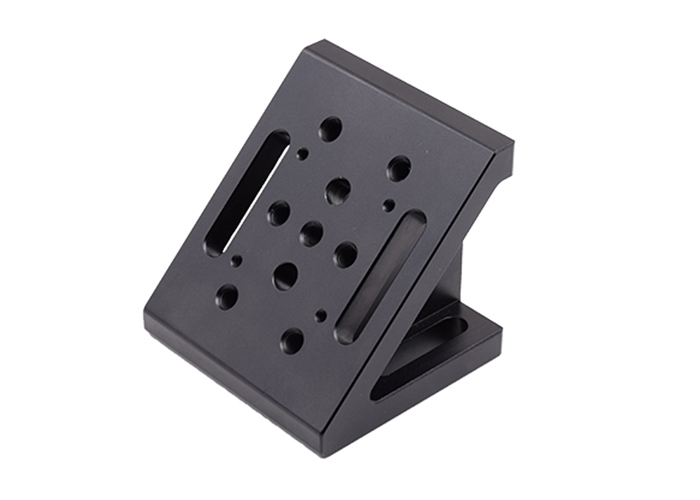

The angle between PJK41 slope and bottom is 45 °
Product parameters
| Model | Angle | Material | Dead-weight |
| PJK41 | 45° | aluminum alloy | 260g |
| PJK42 | 30° or 60° | aluminum alloy | 430g |
Product Size
