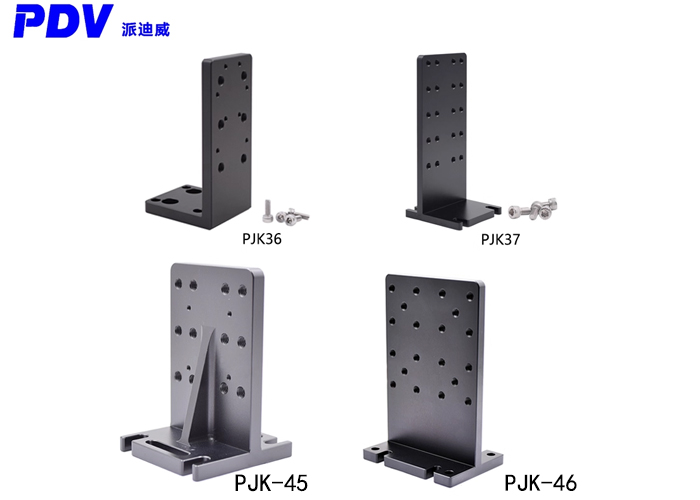

It is mainly used to build connections when the displacement table is in vertical use, and is connected to other displacement tables or optical platforms through the bottom mounting holes.
Product parameters:
| Model number | PJK36 | PJK37 | PJK38 | PJK39 |
| Overall dimension | 51mm×45mm×100mm | 68×68×160mm | 65mm*65mm*98mm | 65mm*90mm*142mm |
| Through hole size | 32×32mm/φ3.5mmcountersink | 50×50mm（Φ7mm hole） | 50mm*50mm & 25mm*50mm,M6 | 75mm*50mm & 50mm*50mm,M6 |
| Mounting hole spacing | 15×30mm(M3)； 25×50mm（M6）； 32×32mm（M3） | 25×25mm 50×50mm(M6) | 50mm*50mm,M6 32mm*32mm,M3 | 75mm*75mm 50mm*50mm,M6 |
| weight | 0.115kg | 0.28kg | 0.2kg | 0.39kg |
| Height of center | 59.5mm | —— | ||
| Materials | Aluminium alloy | —— | ||

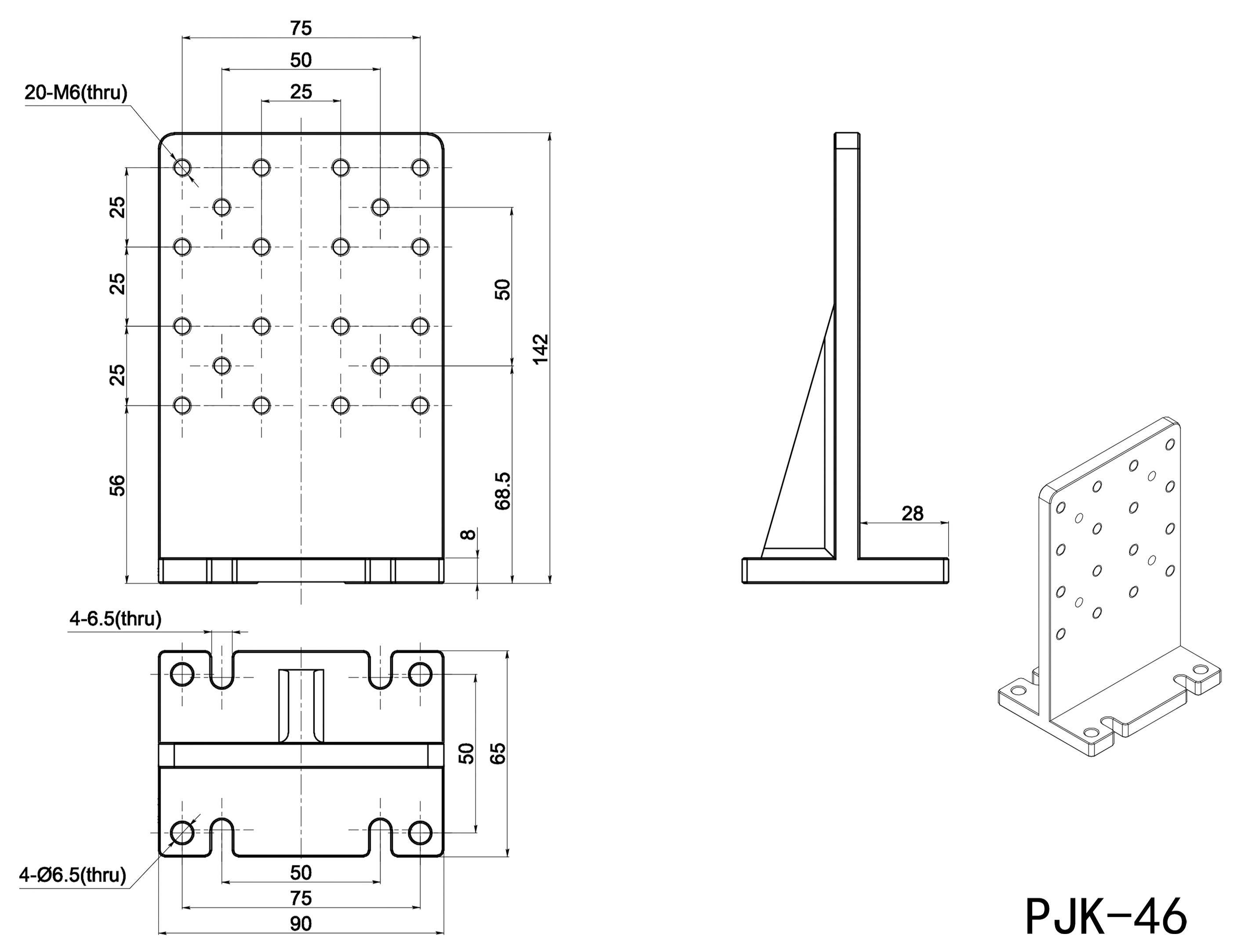

Product size:
