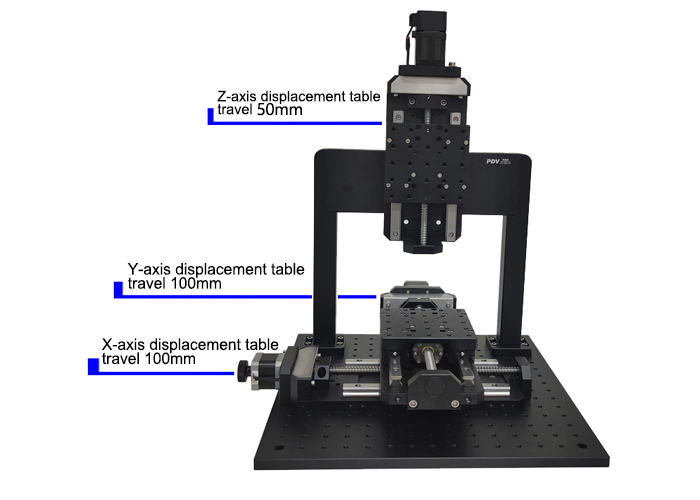

3D gantry type displacement table adjustment table LM140
Product parameters:
| Model number | LM140 |
| X-axis travel | 100mm |
| Y-axis travel | 100mm |
| Z-axis travel | 50mm |
| X/Y/Z adjustment resolution | 20um |
| X/Y/Z repeated positioning accuracy | ±10um |
| X/Y/Z repeated positioning accuracy | 20um |
| X/Y bearer | 15kg |
| z-bearing | 5kg |
| Maximum speed | 15mm/s |
| Equipment weight | 20kg |
| load | 30kg |
Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
