  • kowa lens microscope objective lens LM35HC-SW

Product Name: kowa lens microscope objective lens LM35HC-SW

Share
Specification:
Model
LM25HC-SWLM35HC-SWLM50HC-SW
Focal length(mm)253550
Image size(mm)1"(Φ16)1"(Φ16)1"(Φ16)
Iris range (F-stop)F1.4〜F16F1.4〜F16F1.4〜F16
Focusing range(m)0.3〜∞0.3〜∞0.5〜∞
ControlIrisManualManualManual

FocusManualManualManual
Angle ofview(degree)1inch29.3×22.020.9×15.814.5×10.8
2/3 inch20.2×15.114.4×10.810.0×7.54
1/2 inch14.7×11.010.5×7.87.3×5.4
Resolution(Center, Corner)120lp/mm,80lp/mm120lp/mm,80lp/mm120lp/mm,80lp/mm
Distortion(TV)−1.0%−0.5%0.05%
Back focus in air(mm)16.516.814.8
Mount
C-mountC-mountC-mount
Filter thread(mm)M35.5×P0.5M35.5×P0.5M40.5×P0.5

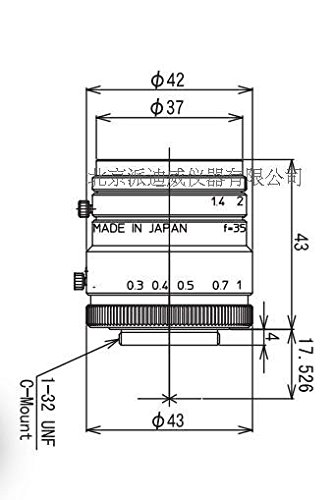

Size(mm)Φ42×43Φ42×43Φ47.5×48
Weight(g)125130200
Temperature range−10℃〜+45℃−10℃〜+45℃−10℃〜+45℃


kowa lens microscope objective lens LM35HC-SW


Product details:
Advantage:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

Service:
kowa lens microscope objective lens LM35HC-SW
  • kowa lens microscope objective lens LM35HC-SW
  • kowa lens microscope objective lens LM35HC-SW
  • kowa lens microscope objective lens LM35HC-SW
  • kowa lens microscope objective lens LM35HC-SW
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
kowa lens microscope objective lens LM35HC-SW
kowa lens microscope objective lens LM35HC-SW
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
