Model Number | PT-SD88 | PT-SD89 |

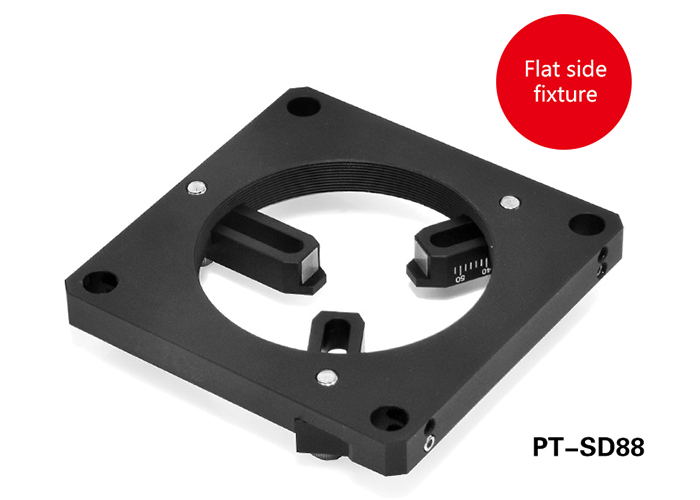

Fixture Type | Flat side fixture | V-shaped side fixture |
Compatible lens thickness | Theoretically, the thickness is not limited | Up to 5mm thick |
Weight | 67.9g | 68.3g |
Compatible lenses | Ø16mm- Ø51mm Lens | |
Port thread | SM(2.035”-40) internal thread | |
Type of through-hole | Ø6mm，Spacing 60mm | |
Material | 7075 aluminum alloy | |
Adjustable Diameter Lens Mount PT-SD88/SD89
Product Features
1. Compatible with optical components ranging from 16mm to 51mm;
2. 4 through holes with a center spacing of 60mm;
3. SM2 thread (2.035 "-40), compatible with SM2 series lens sleeves;
4. Marking scale with laser engraving, used to assist in the centering of optical components.
Product size chart
The adjustable lens holder is very suitable for general installation of optical components of different sizes. The clamping arm can be used for both positive and negative purposes, with flat or V-shaped sides, and can also be individually adjusted for optical components with unusual shapes. Optical components or objects can be manually aligned and then locked in place by tightening the three hand screws in the clamping arm.
The installation seat and clamping arm have laser engraved boundaries and millimeter scales, respectively. These calibration scales and laser engraving lines achieve more repeatable positioning and assist in centering the optical components in the installation seat. (Note: The scale is only for auxiliary positioning reference and cannot be used for precise scale positioning.)
The adjustable diameter lens holder is compatible with optical components ranging from 016mm to 051mm. The thickness of clamping lenses is not required for PT-SD88 theoretically, while PT-SD89 does not exceed 5mm in thickness.
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
