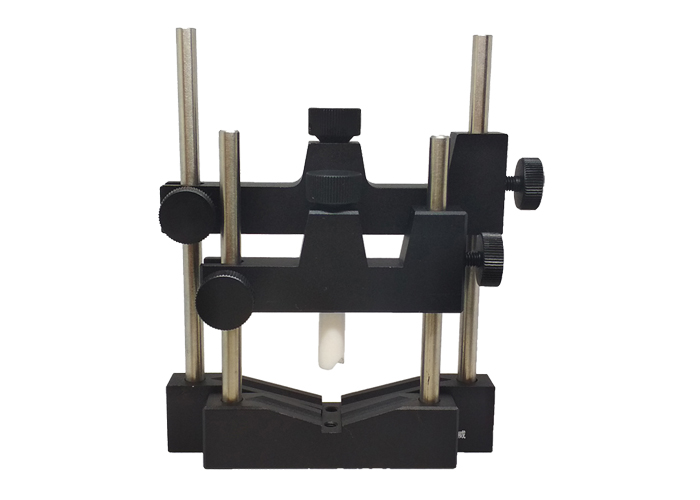

The adjustable frame: PT02 - (50-150)
S characteristics:
S adjustable elastic elastic clamping way, until the clamping rigidity, convenient loading and unloading, holding firm
S V ptfe chuck protection glasses
S V chuck can be 360 ° rotation, cooperate with v-shaped base, may be holding different thickness of the lens or cylinder
| model | PT02-50 | PT02-75 | PT02-100 |
| Price US $ | 28.4 | 37 | 46.3 |
| A | 42 mm | 65 mm | 90 mm |
| B | 54 mm | 80 mm | 105 mm |
| C | 80 mm | 106 mm | 126 mm |
| D | 100 mm | 128 mm | 151 mm |
| E | 76 mm | 102 mm | 127 mm |
| F | 38 mm | 51 mm | 63.5 mm |
| Clamping diameter | 5-50 mm | 5-75 mm | 10-100 mm |
| self-respect | 0.15 kg | 0.2 kg | 0.25 kg |
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
