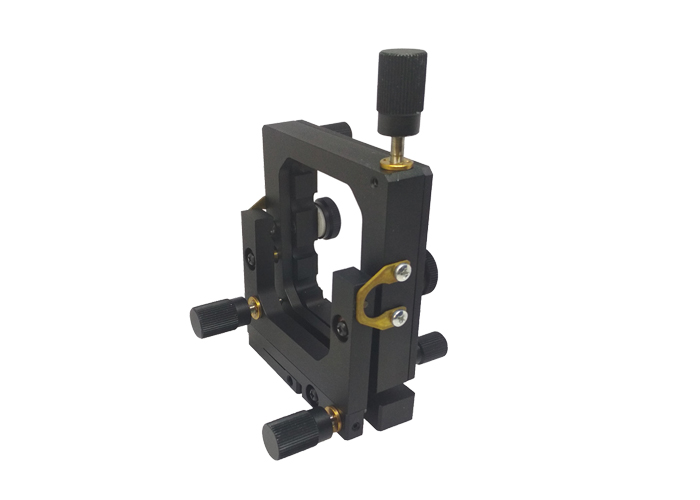

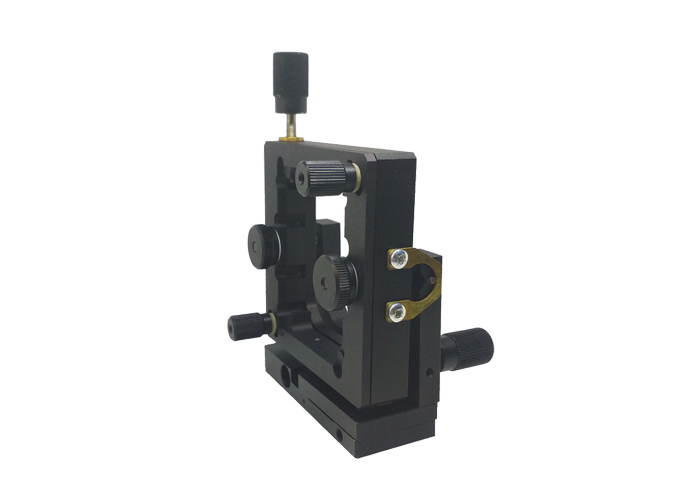

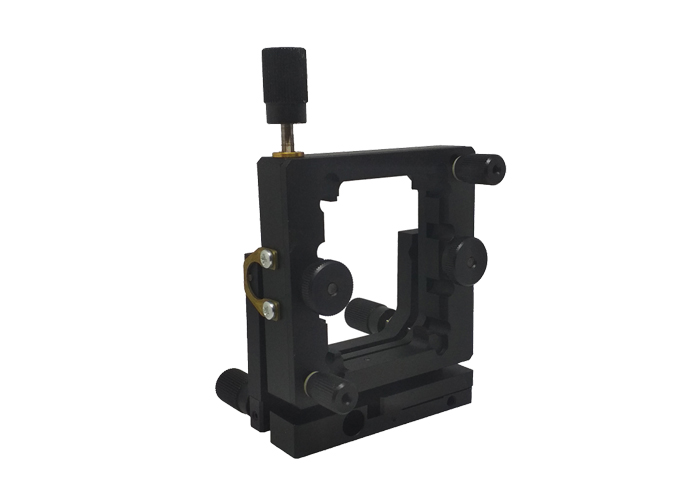

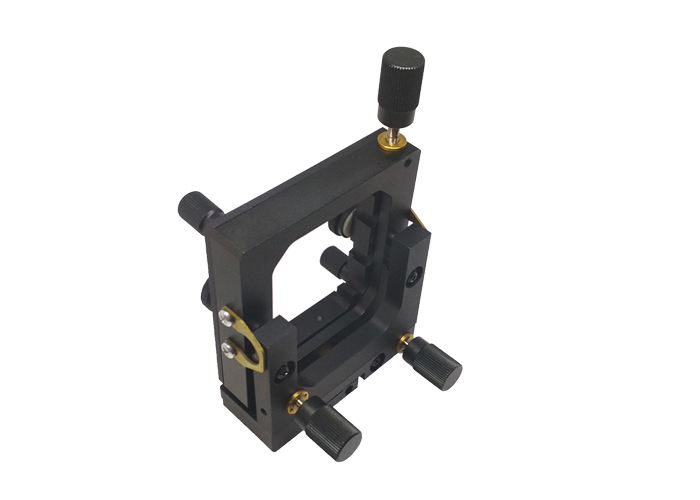

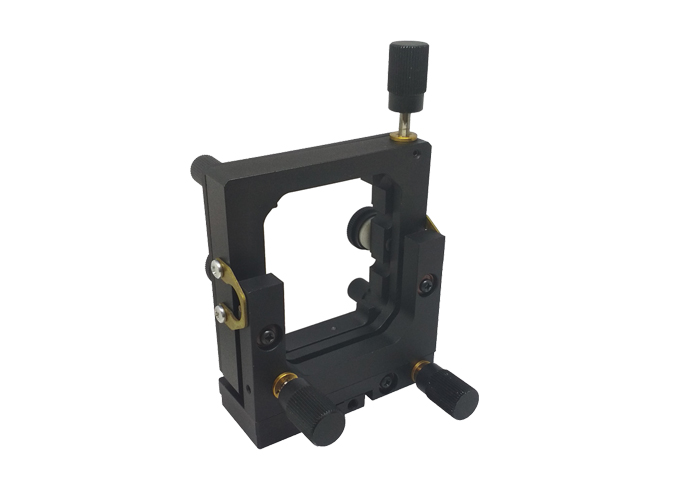

Cylindrical frame: PM301-50 x 60
S characteristics:
S can be two-dimensional orthogonal cylindrical lens do coplanar tilt adjustment
S can be adjusted around the axis rotation
S can carry two size of the flat convex or plane concave cylindrical lens, cylindrical lens can be horizontal or vertical
| model | PM301-50×60 |
| Two-dimensional tilt adjustment range | ±4° |
| Rotating adjusting range | ±5° |
| Install card length | 50-50.8 mm |
| Install card width | 60. 5mm |
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
