| Model Number | TG4-01 |
Specification | 31.7mm*19.4mm | |
Thread Length | 3.2mm at one end, 11.6mm at the other end | |
Thread Type | SM1 external thread | |
Weight | 10.0g | |
Material | 7075 aluminum alloy | |
| Model Number | TG4-02 |
Specification | 56.0mm*18.0mm | |
Thread Length | One end SM1, one end SM2 | |
Thread Type | SM1/SM2 external thread | |
Weight | 25.0g | |
Material | 7075 aluminum alloy | |
| Model Number | TG4-03 |
Specification | 56.0mm*14.8mm | |
Thread Length | One end SM1, one end SM2 | |
Thread Type | SM1 internal thread, SM2 external thread | |
Weight | 30.0g | |
Material | 7075 aluminum alloy | |
| Model Number | TG4-04 |
Specification | 56.0mm*23.9mm | |
Thread Length | One end 3.0mm, one end 17.7mm | |
Thread Type | SM2 external thread | |
Weight | 29.5g | |
Material | 7075 aluminum alloy |

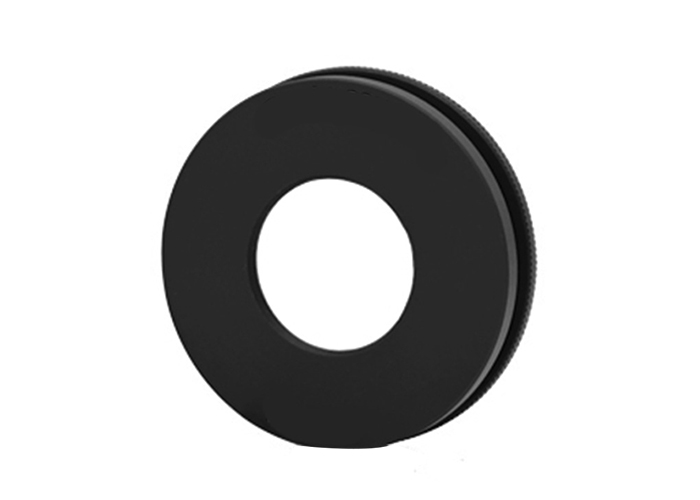

Lens Sleeve Connector
The external thread design of the lens sleeve connector is used for the connection between SM1 or SM2 internal thread components. The coupling adapter is threaded onto the lens sleeve and clamped together to allow the components to engage while rotating. They allow the attached components to be fixed after adjustment is completed. This limits the external thread depth of any SM 1/SM2 threaded component, making it easy to adjust, transfer, and secure when your two components have a deviation direction.
Product characteristics
1. Male threaded connectors, used for connecting sleeve sleeves with other optical and mechanical components;
2. The connector is equipped with SM1 (1.035 "-40) and SM2 (2.035" -40) external threads;
3. Can optimize the position and angle of components attached to it;
4. Comes with a locking ring to secure the attached components after adjustment is completed.
Product size chart
Provide 3 types of external threaded connectors for connecting SM1/SM2 internal threaded components;
TG4-01 is an SM1 two end male thread connector used to connect two SM1 (1.035 "-40) internal thread components. It has one end 3.2mm and the other end 11.6mm, with a total length of 19.4mm. It comes with a locking ring.
TG4-02 is a male connector with one SM2 male thread and one SM1 male thread, used to connect SM2 components and SM1 internal thread components. The length of SM2 end is 10mm, while the length of SM1 end is 2.5mm, with a total length of 18mm. Comes with locking ring.
TG4-04 is an SM2 two end male thread connector used to connect two SM2 (2.035 "-40) internal thread components. The end length is 3mm, the other end length is 17.7mm, and the total length is 23.9mm. It comes with a locking ring.
Each connector comes with a locking ring that allows the attached components to be fixed after adjustment, thereby limiting the depth of external threads for any SM1/SM2 threaded components. Convenient adjustment and fixation when your two components have preferred relative directions.
