Model Number | TG12-01 | TG12-02 | TG12-03 | TG12-04 |
Screw Thread | SM1(1.035 "-40) internal thread | |||
Thread Length | 6.35mm | 12.7mm | 25.4mm | 50.8mm |
Internal Diameter | φ23mm | |||
Lock Ring | No | 1 | 2 | 2 |
Material | 7075 Aluminum Alloy | |||
Weight | 1.7g | 6.2g | 12.3g | 20.0g |
φ 1 inch lens sleeve connector
Product characteristics
1. SM1 (1.035 "-40) full thread connector;
2. Connect the two lens sleeves together;
3. The locking ring generates a mechanical stop along the thread;

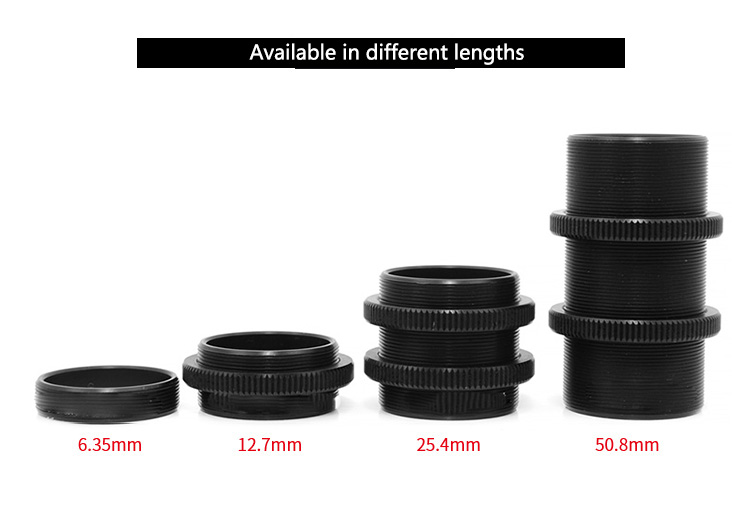

4. Available in different lengths.

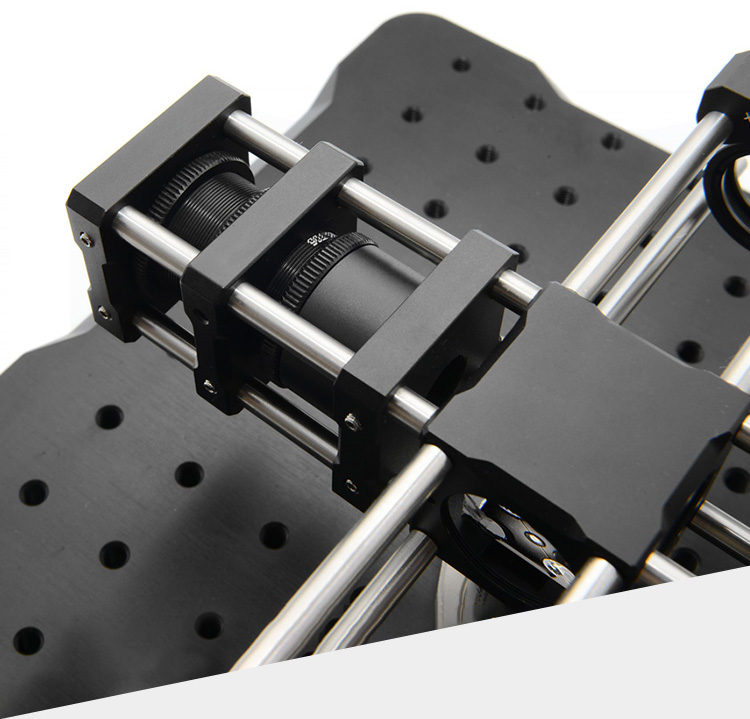

The TG12 series lens sleeve connector is used to connect two lens sleeves with SM1 internal threads at both ends. The connector has a full section of external thread, which can optimize the position and angle of the connecting components. When adjusting the direction, the length of the sleeve will also change. And it comes with a locking ring (TG12-01 does not have a locking ring), which can be manually tightened to connect the components. These adapters have an opaque design and are very suitable for connecting existing lens sleeve systems.
The locking ring can limit the depth of the external thread of the SM1 threaded component, and the use of multiple locking rings can independently lock the lens sleeve.
