Model Number | TG16-01 | TG16-02 |
Specification | Ø17.8*26.2mm | Ø17.8*38.9mm |
Adjustable Range | 0.5 inch | 1 inch |
Weight | 6.3g | 7.3g |
Screw Thread | SM05(0.535”-40) Internal and external thread | |
Material | 7075 Aluminum Alloy | |

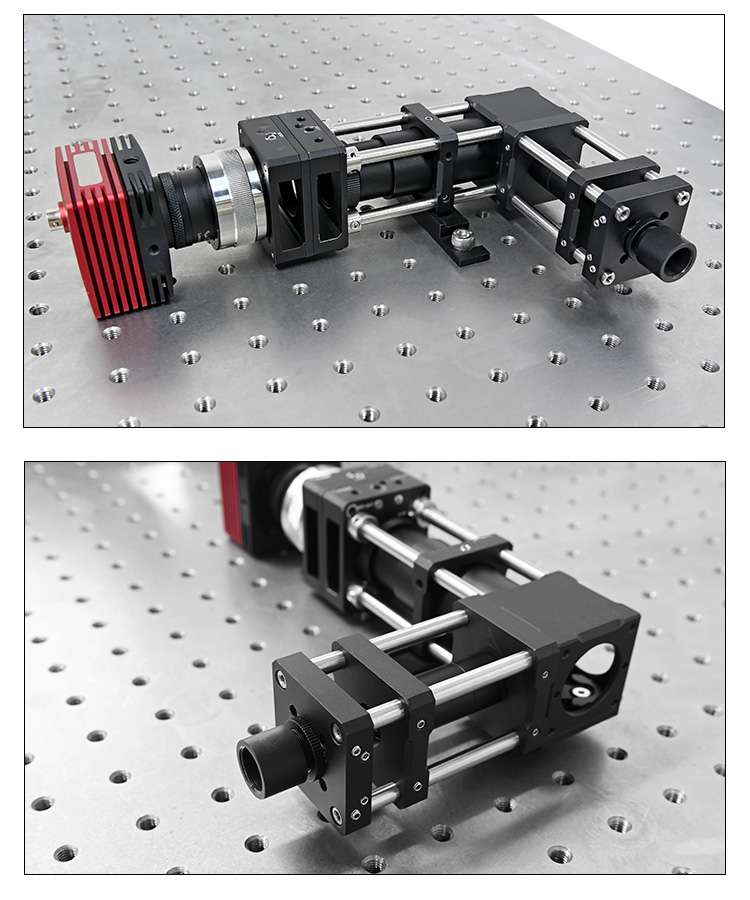

φ 1/2 inch adjustable sleeve
Product characteristics
1. SM05 (0.535"-40) internal and external threads.
2. The extended external thread can be used to adjust the position of installed optical components.
3. Optional adjustment range: 0.5 inch or 1 inch.
4. Clamping φ 1/2 inch (12.7mm) optical element.
5. Contains a snap ring and locking ring.
The TG16 series lens sleeve has an adjustable SM05 (0.535 "-40) external thread length at one end, allowing for installation in the sleeve φ The 1/2-inch optical element is rotated and translated along the optical axis of the sleeve system until the optical element reaches the desired position. Then, use a locking ring to fix the optical element in place. These rotatable length adjustable lens sleeves are an ideal solution for fine-tuning the first and last lenses in the lens sleeve system.
The depth of the threaded hole inside the casing is 13.5mm, which is compatible for installation φ 1/2 inch optical element with a maximum thickness of 11.7mm. The sleeve contains a snap ring, which is used to install the optical element into the threaded hole section during operation.
