Specification:

Product parameters:

Model number	PT-SD316	PT-SD317	PT-SD318
Mesa size	90*90mm	125*125mm	125*125mm
Height of center	50	75	75
load	98N(10kgf)	118N(12kgf)	118N(12kgf)
Maximum adjustable	±30°	±30°	±30°
One turn	≈1.25°	≈0.87°	≈0.87°
thickness	30mm	36mm	72mm
weight	0.62kg	1.37kg	2.74kg
material	Aluminium alloy	Aluminium alloy	Aluminium alloy

Product details:

Product size:

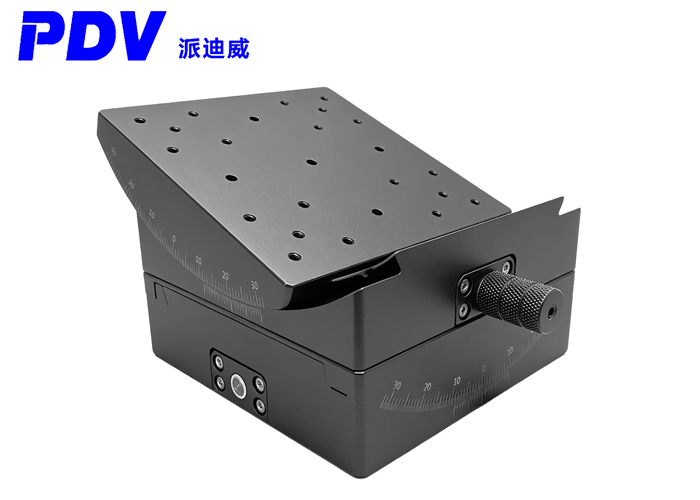

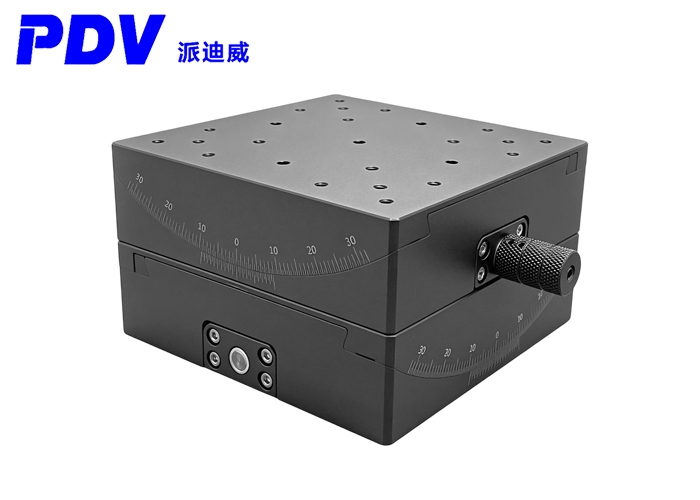

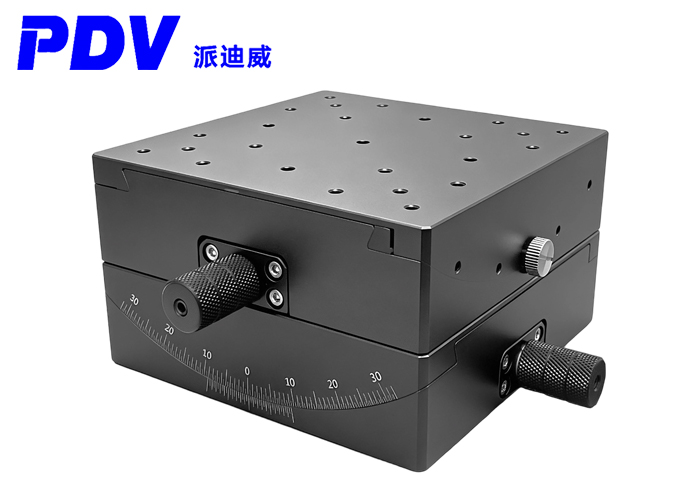

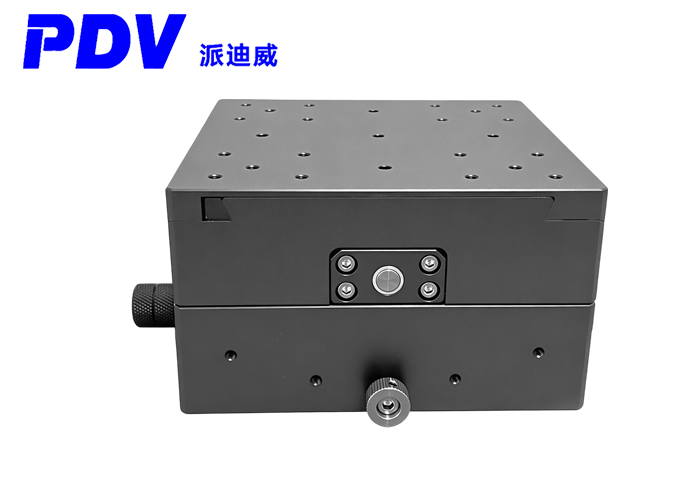

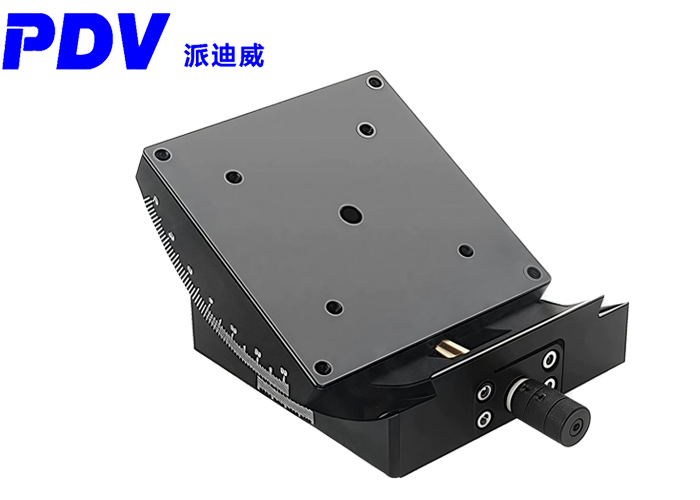

Manual tilt Angle station camera adjustment rack Large Angle ±30° Size 90×90125×125

Service:

Manual tilt Angle station camera adjustment rack Large Angle ±30° Size 90×90125×125

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
