Specifications
Model | PT-SD306 |
Platform Size | 65mm×65mm |
Angle range | ±10° |
Height of turning center | 75 mm |
Deviation of turning center | φ0.05 mm |
Driving mode | Worm drive |
Guide form | V-guide + ball |
Driving position | Central drive |
scale | 1° |
reading | 6′ |
adjustment | (Reference) 3 ″ / 10 subdivision |
Pendulum | 80″ |
tilt | 60″ |
Load bearing | 10kg |
Dead weight | 0.52kg |
Material | Aluminium alloy |
surface treatment | anodic oxidation |

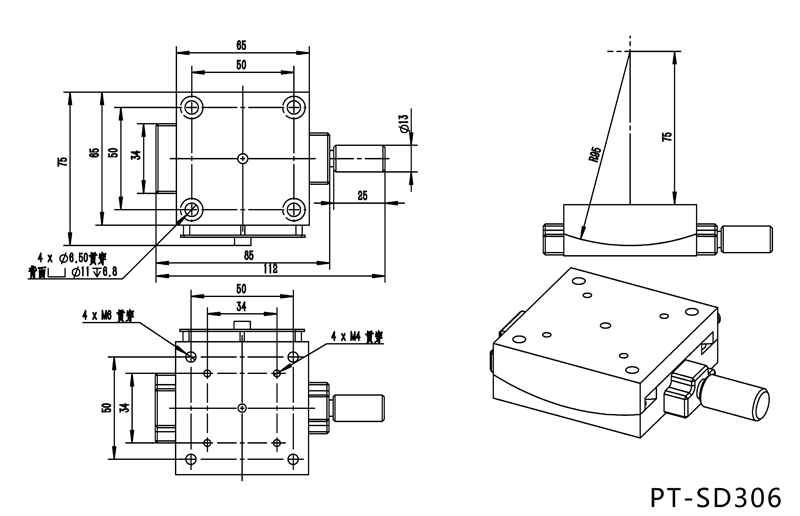

Product Size:
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
