Model Number | PT-SD421 | PT-SD422 | PT-SD423 |
Platform Size | 80*132 | 100*160 | 160*220 |
Type Of Axis | Z-axis | ||
Travel Range (mm) | 22 | 40 | 70 |
Driving Method | screw | ||
Material – Finish | Aluminum Alloy – Black-Anodized | ||
Load Capacity (N) | 147(15kg) | ||
Net Weight (kg) | 1.4 | 2.3 | 4.2 |

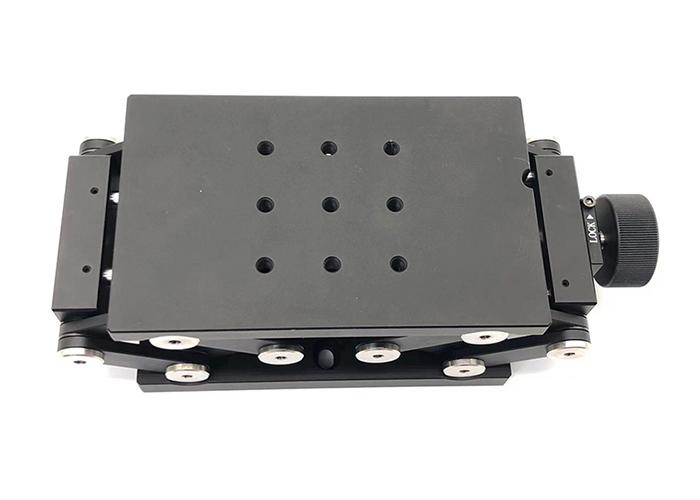

Precision Manual Lab Jack
This series of precision manual lab jack is a precision horizontal lifting displacement platform that can be finely adjusted through the handle. The main material of the displacement platform is high-strength aluminum alloy, and the screw rod uses high-precision fine thread to adjust the height very carefully and smoothly. It also has reliable self-locking, but the standard version of the displacement platform does not have visual scale values.
