Product Name: Z-Axis Height Adjustment Platform Manual Lab Jack PT-SD424

Share
Specification:

Item  Number

PT-SD424

Platform size

60mm×60mm

Actuator Type

Micrometer Head

Travel Range

13mm

scale

0.01 mm

Precision

2μm

Sensitivity

0.002mm

Load Capacity

4kg

Weight

0.47kg

Material – Finish

Aluminum Alloy - Black-Anodized

Product details:

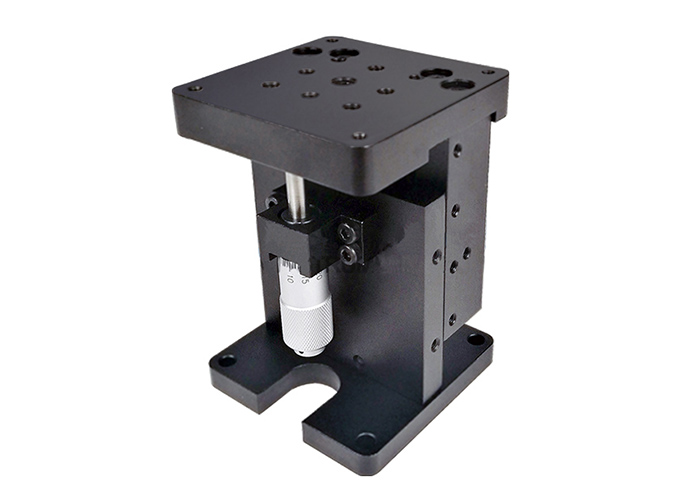

Differential head driven manual lab jack PT-SD424


Product features:

1. The guide rail is made of precision linear steel balls combined with precision ground steel rods, ensuring comfortable and stable movement with high accuracy;

2. Direct driving of the micrometer head for quantitative reading;

3. Equipped with a locking handwheel on the side, the locking is firm, safe and reliable;

4. The table top and bottom have standard connection holes of M4 and M6, making it easy for this manual lifting platform to be fixed and connected to other series of displacement platforms.


Product size chart:

Z-Axis Height Adjustment Platform Manual Lab Jack PT-SD424

Advantage:

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.



PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

If our standard doesn't meet your needs, you can customize it.
