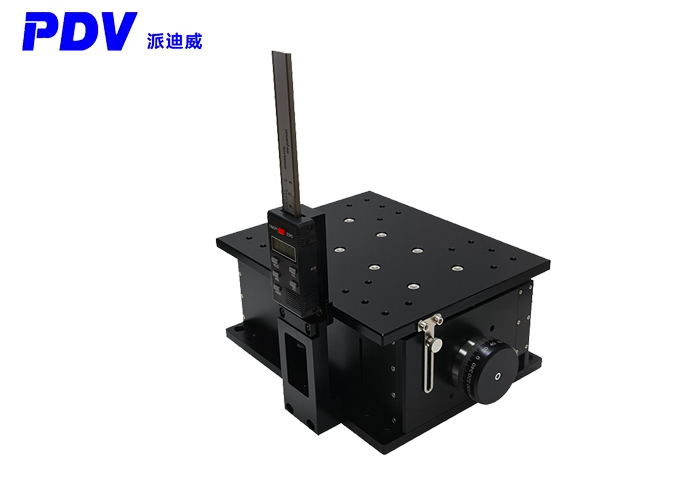

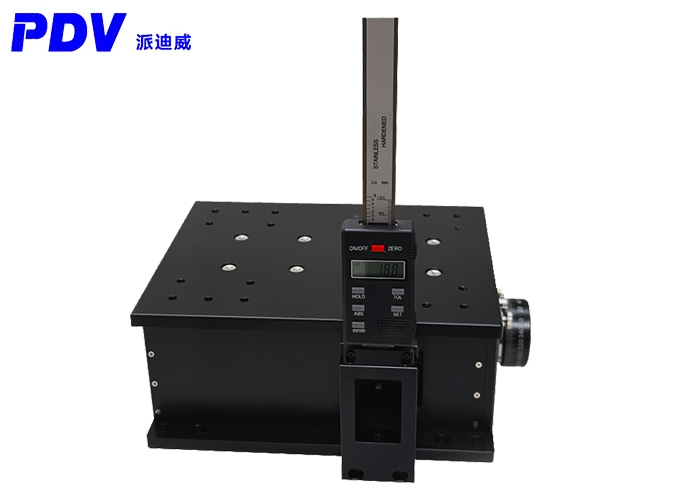

Product Name: PT-SD198 screw adjusting table lifting platform wedge platform Z-axis lifting platform stroke 40MM

Share
Specification:

Product parameters:

Model numberPT-SD198
Table size (mm)198×248
Travel (mm)40
Pitch adjustment (mm)2
Resolution (mm)0.005
Minimum reading (mm)0.01
Motion straightness (um)
(Swing from side to side when lifting)
±8
Motion perpendicularity (um)
(Pitch forward and backward when lifting)
±16
Table flatness±20
Load capacity (kg)30
Sliding guideSquare guide
Weight (kg)11
