Specification:

Model		TASB-155
Platform Size〔 mm 〕		15 × 15
Types of axes		XYZ axis
Trip〔 mm 〕		XY axis± 2 Z axis＋ 2· － 0
pitch〔 mm 〕		0.4
Guide form		Dovetail groove form
Main materials		brass
surface treatment		Black chrome
carrying capacity〔 N 〕		4.9（0.5kgf）
Movement accuracy	Straightness〔μ m 〕	30
	Parallelism〔μ m 〕	200
dead weight〔 kg 〕		0.04

Product details:

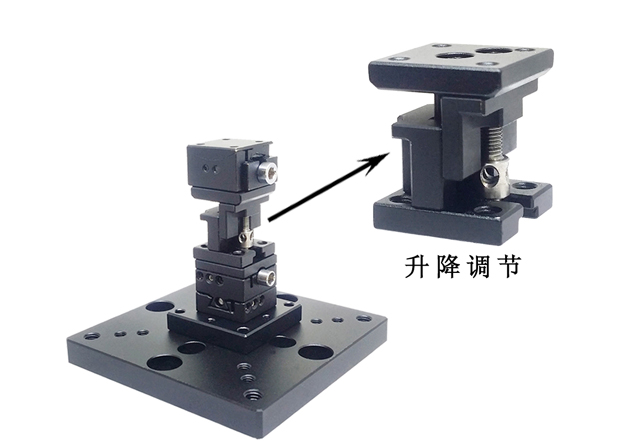

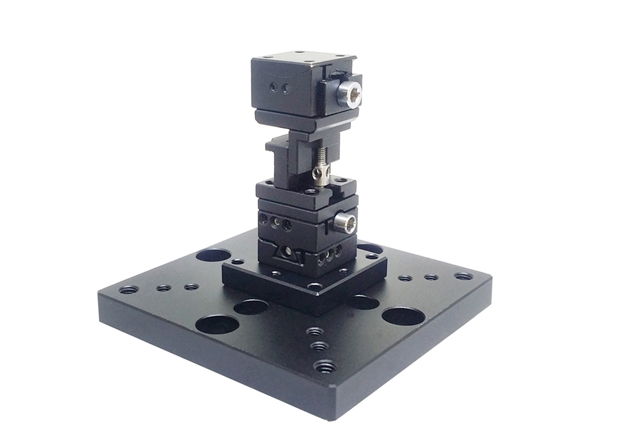

TASB-155 XYZ Displacement stage Dovetail guide XYZ angle Platform

Service:

TASB-155 XYZ Displacement stage Dovetail guide XYZ angle Platform

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
