PT-XY60 XY axis 60 displacement platform Factory - Manual Multi-axis Stage, Two-Axis High Load Tilt Platform, Manual Multi-axis Stage For Sale

Specification:

Item Number	PT-XY30-C/R/L	PT-XY40-C/R/L	PT-XY60-C/R/L	PT-XY80-C/R/L	PT-XY90-C/R/L	PT-XY100-C/R/L	PT-XY125-C/R/L
Platform Size	30×30mm	40×40mm	60×60mm	80×80mm	90×90mm	100×100mm	1250×125mm
Travel	±3mm	±6.5mm	±6.5mm（Customizable 12.5mm）	±12.5mm	±12.5mm（Customizable 6.5mm）	±12.5mm	±12.5mm
load	14.7N(kgf)	29.4N(3kgf)	49N(5Kgf)	98.8N(10kgf)	93.1N(9.5kgf)	140N(14.3kgf)	98N(10kgf)
Material	Aluminum Alloy (Customizable Iron Material)
scale	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm
accuracy	0.01mm	0.01mm	0.01mm	0.02mm	0.02mm	0.02mm	0.02mm
Parallelism	0.04mm	0.04mm	0.06mm	0.06mm	0.06mm	0.06mm	0.08mm
weight	0.12kg	0.28kg	0.48kg	1.05kg	0.94kg	1.4kg	2.8kg

Product details:

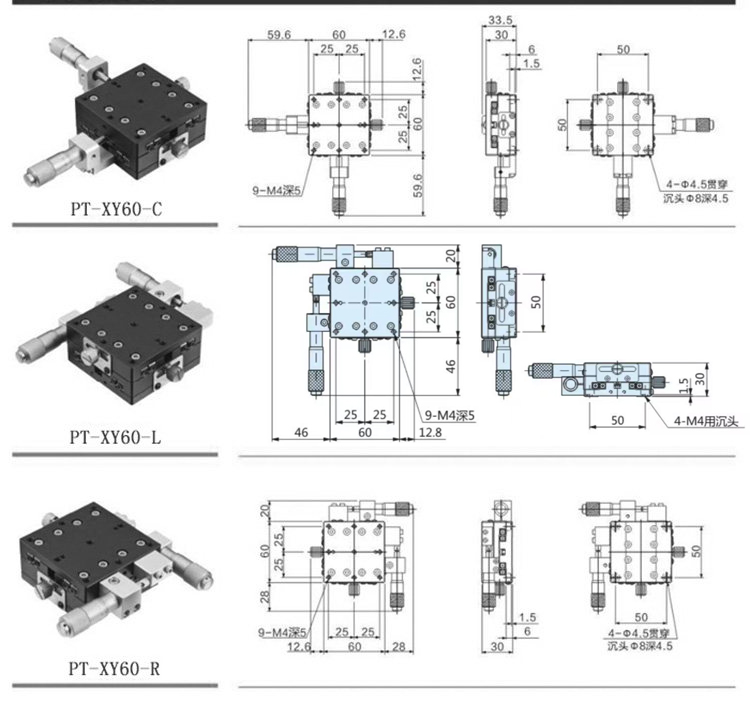

PT-XY60 XY axis 60 displacement platform

Service:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
