Competitive commodity
PDV offers high precision electric platform, high precision manual platform, optical plate, microscope bracket, long working distance objective, microscope lighting source, optical bench products for laboratory light path building.
we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.
Product features
New construction ,new technology;
The key index has up to the international level of the similar products by strictly inspection ；
Professional R & D team to meet your individual needs.

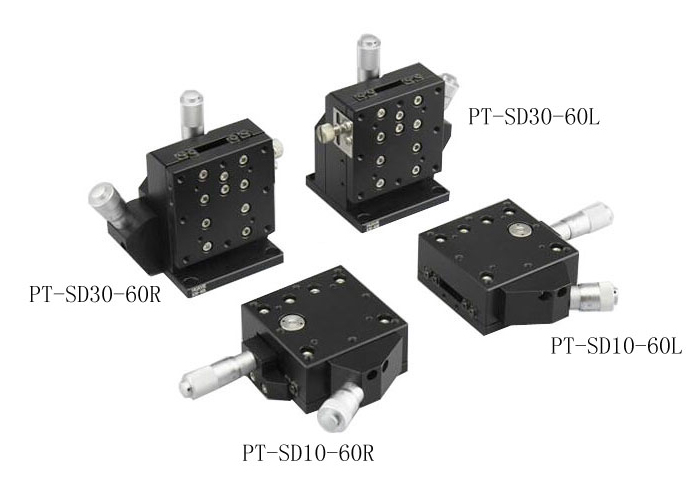

| Model Number | PT-SD10-60L | PT-SD10-60R | PT-SD30-60L | PT-SD30-60R | |||||
| Actuator Type | Micrometer Head | ||||||||
| Operating Position | Coarse adjustment:CenterFine adjustment:Right | Coarse adjustment:CenterFine adjustment:Left | Coarse adjustment:CenterFine adjustment:Right | Coarse adjustment:CenterFine adjustment:Left | |||||
| Scale | Coarse adjustment:10μm/degree Fine adjustment:0.5μm/degree | ||||||||
| Platform Size | 60×60mm | ||||||||
| Travel Range | Coarse adjustment :±6.5mm Fine adjustment:±0.3mm | ||||||||
| Travel Guide | Crossed Roller Bearing | ||||||||
| Load Capacity | 5kgf(49N) | 2kgf(19.6N) | |||||||
| Moving Precision | Straightness | 2μm | |||||||
| Pitching | 20” | ||||||||
| Yawing | 10” | ||||||||
| Parallelism | 30μm | 70μm | |||||||
| Driving Parallelism | 10μm | 15μm | |||||||
| Weight | 0.35kg | 0.5kg | |||||||
| Surface Material | Aluminum Alloy BLACK-Anodized | ||||||||
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
