Model Number | PT-SR80L/R | PT-SR100L/R | PT-SR120L/R | PT-SR160L/R |
Platform Size | φ80 | φ100 | φ120 | φ160 |
Type Of Axis | θAxis (rotation axis) | |||
Travel | Coarse Adjustment 360 °, Fine Adjustment | Coarse Adjustment 360 °, Fine Adjustment | Coarse Adjustment 360 °, Fine Adjustment | Coarse Adjustment 360 °, Fine Adjustment |
Driving Method | Micrometer Head | |||
Drive Installation Position | Side | |||
Guide Rail Form | Roller Guide Rail | Cross Guide Rail | ||
Main Materials | Aluminium Alloy | |||
Surface Treatment | Black Anodizing | |||
Visual Reading | 1° | |||
Reading Of Micrometer Head | ≈0.0119° | ≈0.001° | ≈0.009° | ≈0.007° |
Load Capacity(N) | 147(15.0kg) | 147(15.0kg) | 196(20.0kg) | 196(20.0kg) |
Eccentricity | 20μ | |||
Parallelism | 40μ | |||
Table Jumping | 15μ | 15μ | 20μ | 20μ |
| Weight(kg) | 0.95 | 1.2 | 1.42 | 1.9 |
Manual Hollow Rotary Stage
This series of manual rotary platforms is a hollow type precision rotary platform with coarse and fine adjustment. The platform can perform coarse adjustment 360 ° rotation and fine adjustment ± 5 °. During coarse adjustment, loosen the switch screw and directly adjust the upper plane of the platform. During fine adjustment, lock the switch screw, making operation extremely convenient. The platform body is made of high-strength aluminum alloy, sandblasted with black anodizing, and equipped with cross shaped roller bearings, which can achieve high precision and high rigidity.

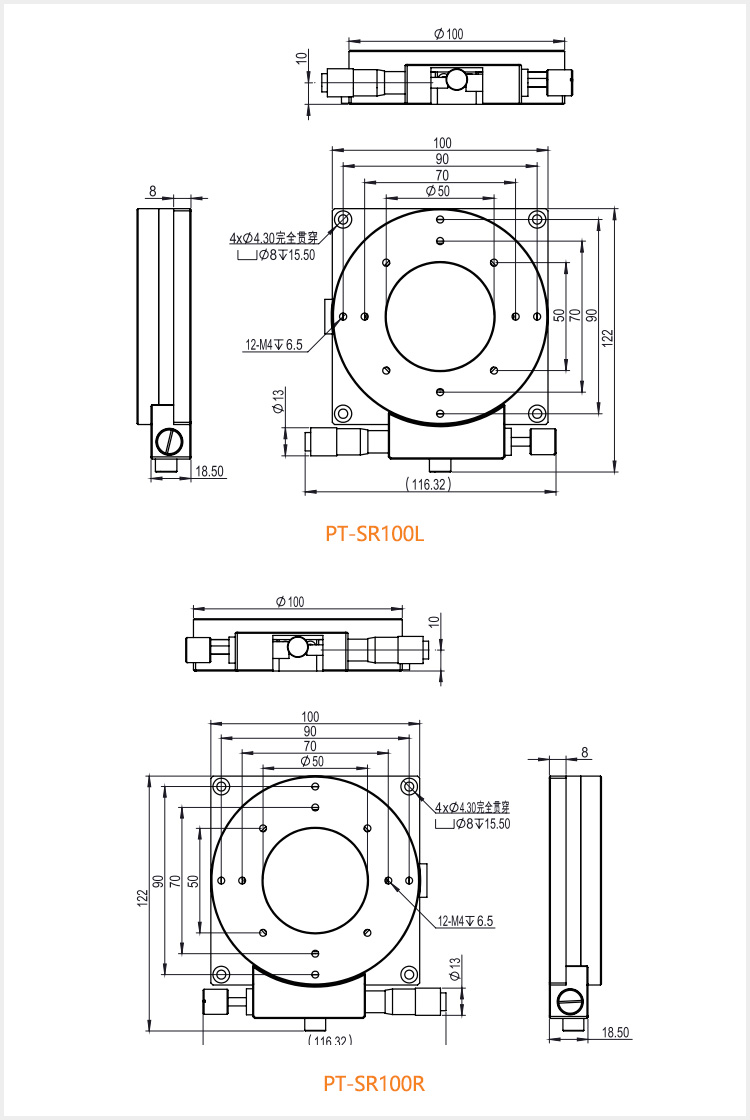

Product size chart
