Specification:

Product parameters:

Structure description	Product model	PSD110-200(Manual)
	Angular range	360 °
	Table size	Phi 200 mm
	Gear ratio	180:1
	Driving mechanism	Worm gear and worm mechanism
	Guide form	bearing
	Bulk material	Aluminium alloy
	Surface treatment	Anodized black
	Central load	55kg
	weight	7.9kg
	End jump accuracy	15μ
	partiality	20μ
	parallelism	100μ

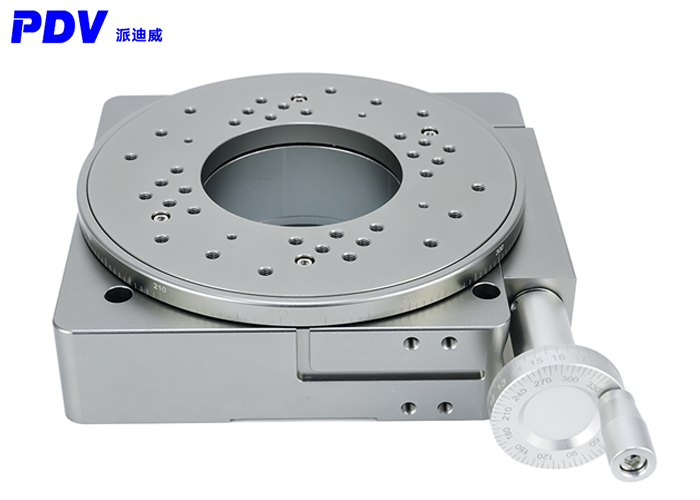

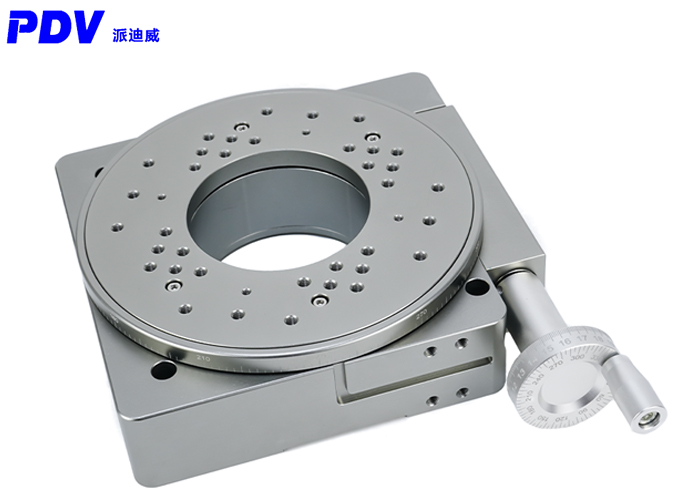

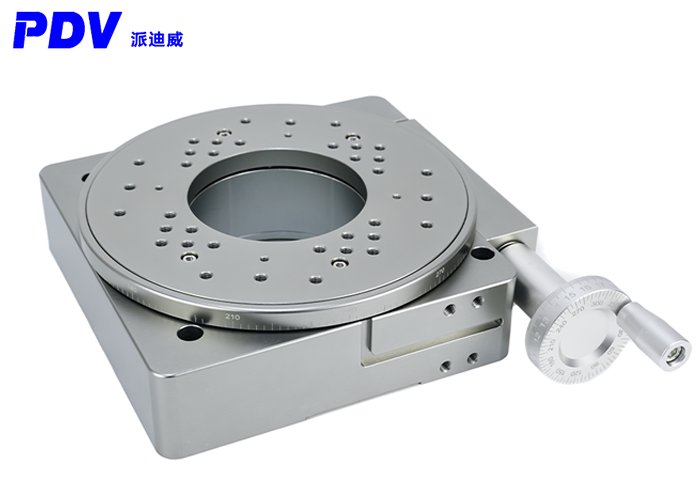

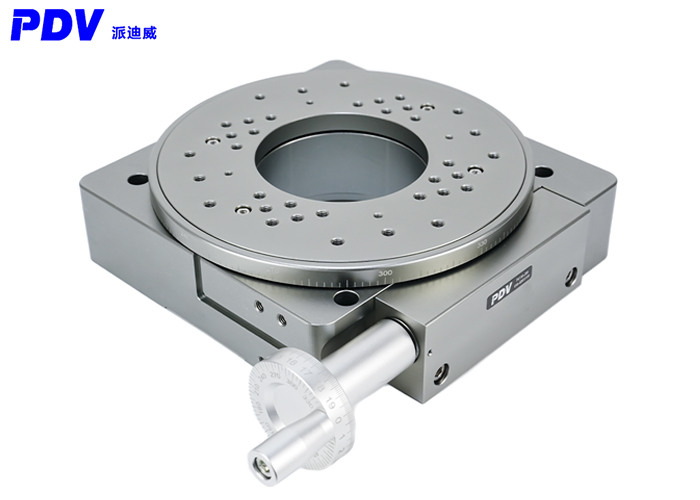

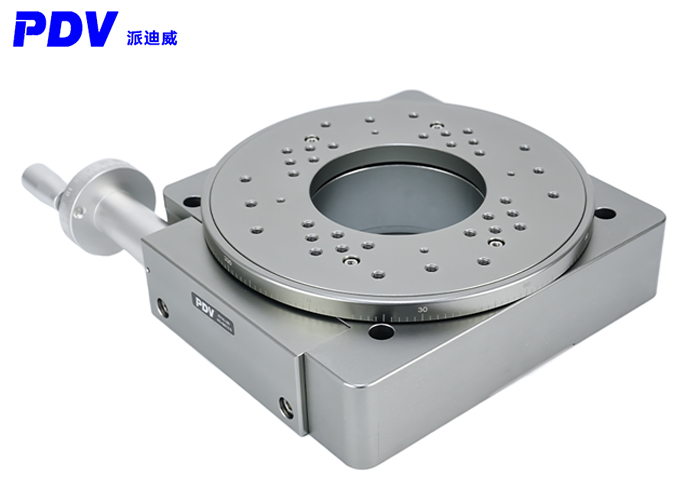

Product details:

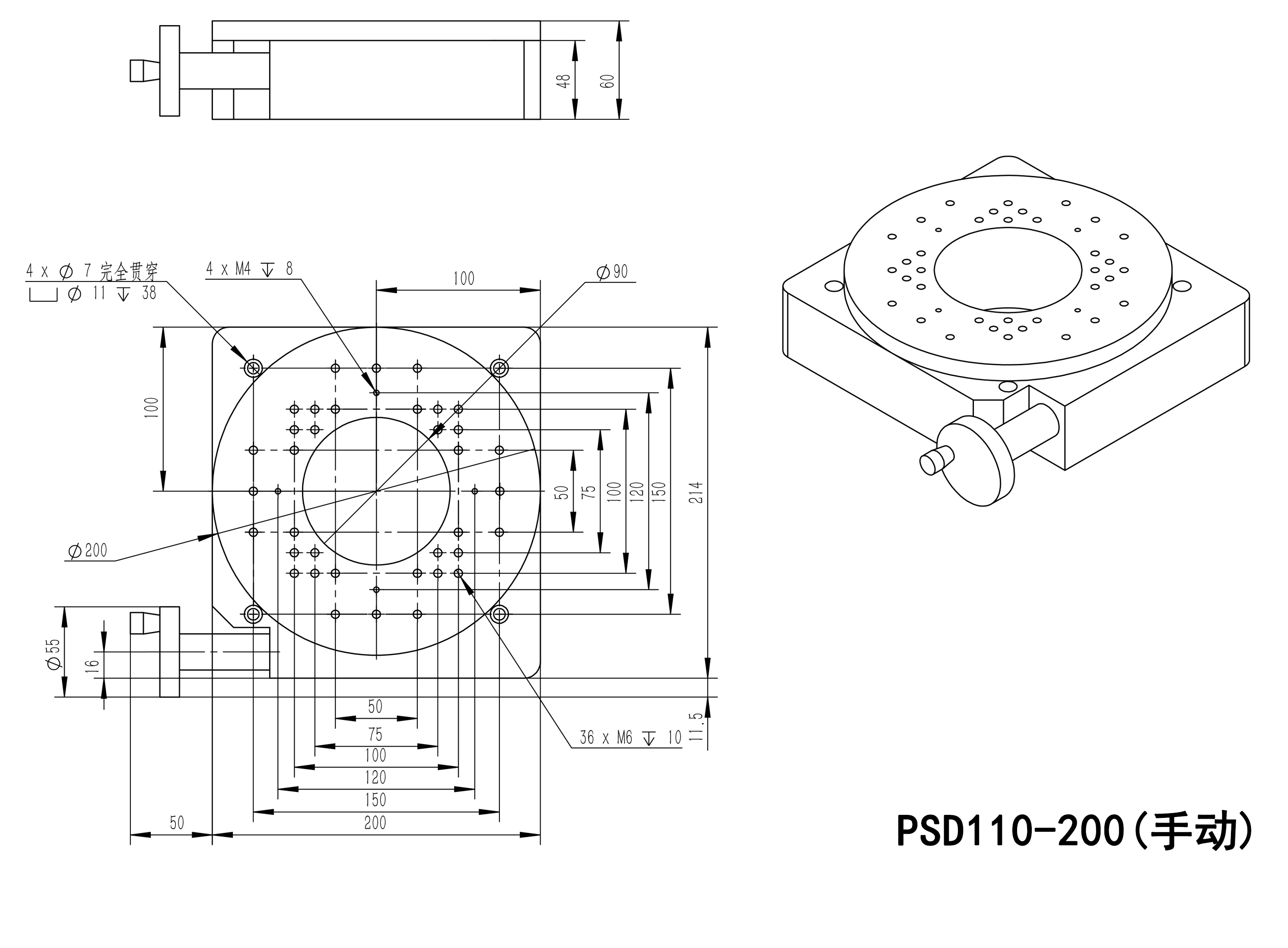

Product size:

Manual rotating worm gear displacement table Positioning table index disc PSD110-200(Manual)

Service:

Manual rotating worm gear displacement table Positioning table index disc PSD110-200(Manual)

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.
