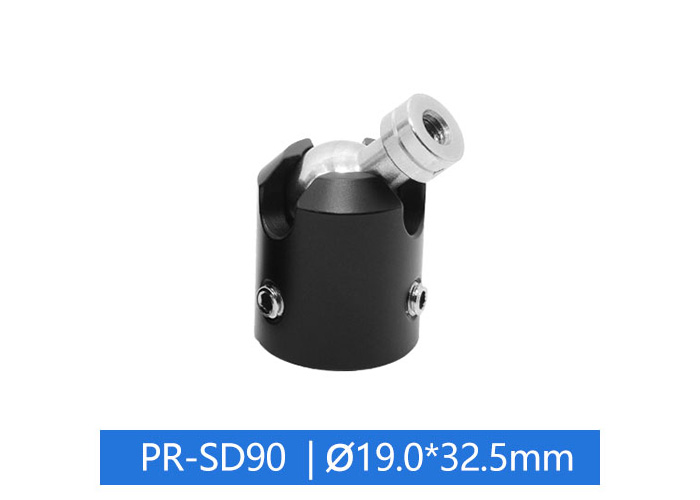

Product Name: Universal loading platform Ball-hinged universal connector PR-SD91

Share
Specification:



Model Number

PR-SD90

PR-SD91

Specification

Ø19.0*32.5mm

Ø25.4*40.5mm

Top   mounting surface

Ø8.9mm

Ø11.1mm

Screw Thread Type

M4

M6

Weight

27.4g

54.3g

Material

7075 Aluminium Alloy

7075 Aluminium Alloy




Product details:

Product characteristics:

1. It can be adjusted arbitrarily within the range of 50 ° cone angle, and has three 90 ° adjustment positions at the same time;

2. Screw fastening mechanism for locking and tension adjustment;

3. M4/M6 mounting holes at the top and bottom.


Product dimension drawing:

Universal loading platform Ball-hinged universal connector

Universal loading platform Ball-hinged universal connector

Universal loading platform Ball-hinged universal connector

Advantage:

The universal joint has a ball hinge mechanism, and can be rotated and fixed at any angle within the range of 50 ° cone angle. At the same time, the installation seat body has 3 notches, which can be positioned and installed at 90 ° relative to the base.

Universal loading platform Ball-hinged universal connector

The surface of the mounting base is provided with three double socket head fixing screws. Use a 2mm/3mm wrench to fix any of the three locking screws to lock the position of the rotating ball, so as to fix the angular position of the mounting surface. The three screws can also be used together to adjust the tension.

The top and bottom of the mounting base have M4 or M6 threaded mounting holes, which are very suitable for installing the optical adjustment bracket and optical extension rod mechanical parts.
