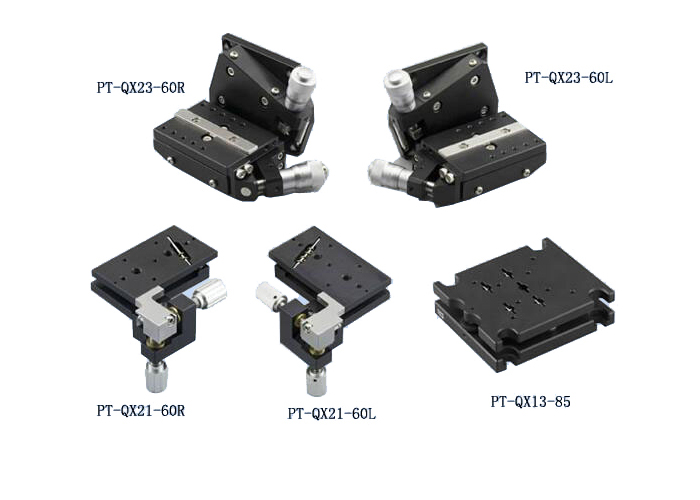

  • Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L

Product Name: Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L

Share
Specification:
Model NumberPT-QX21-60RPT-QX21-60LPT-QX23-60RPT-QX21-60LPT-QX13-85
Driving ModeMicrometer Head0.25mm Pitch Screw
Operating PositionRightLeftRightLeftCenter
Scale5μm/degree1 Circel:0.5mm
Platform Size40×60mm40×68mm
Travel Range:XY PlaneTravel Range:XY Plane ±3°
Travel GuideV-Groove RollerSteel Ball
Load Capacity3kgf(29.4N) 1kgf(9.8N)
Weight0.4kg0.3kg
Surface PreparationAluminum Alloy-Black-anodized

Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L

Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L

Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L

Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L

Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L


Product details:
Advantage:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

If our standard doesn't meet your needs, you can customize it.


Service:
Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
  • Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
  • Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
  • Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
  • Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
Precise Manual Tilt Stage PT-QX21-60R/L, PT-QX23-60R/L
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
