PT-SD101M two-dimensional thin dovetail translation platform, using grinding dovetail guide pair as the guide mechanism, precision thread pair as the driving part, table size 65x65mm, stroke ±3mm, thin thickness, compact structure, the bottom of the four 50mm holes from φ7mm through the hole, can be directly connected with the optical platform. The two sides are equipped with M4 threaded holes, which can also be used with support rods.
Product parameters:
Model number | PT-SD101M |
Moving direction | X-Y |
Table size | 65×65mm |
journey | ±3mm |
Specification of thread pair | M6×0.5 |
Be self-possessed | 225g |

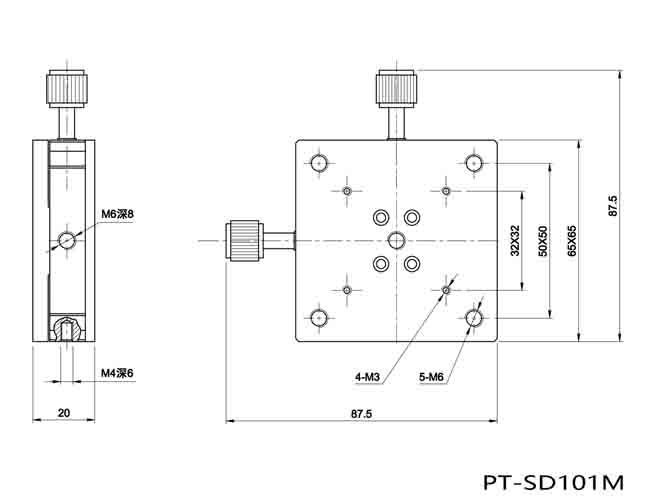

Product size:
