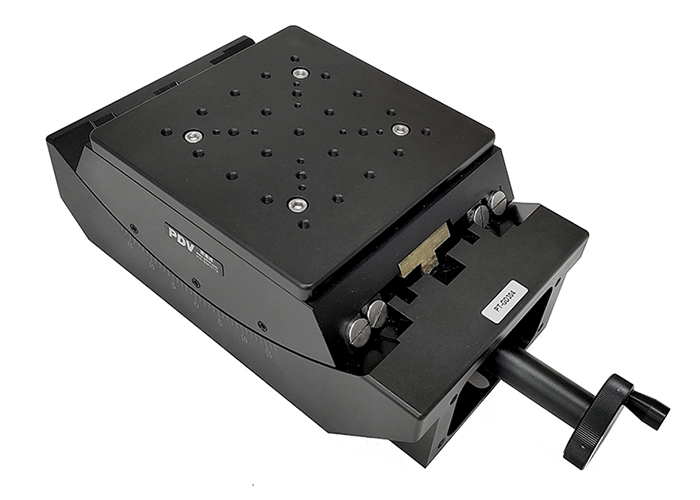

Parameters of Manual Goniometer Stage :
Model Number | PT-GD304 |
Angle Range | ±15° |
Platform Size | 160×160mm |
Transmission Ratio | 400∶1 |
Height of Rotation Stage | 139 mm±0.2 mm |
Drive Mechanism | Worm Gear |
Travel Guide | Crossed Roller Bearing |
Material – Finish | Aluminum Alloy - Black-Anodized |
Load Capacity | 30kg |
Weight | 10.7kg |
Design Resolution | ≈0.007°≈25″(Non-MS Driver); ≈1.3″(20MS Drive) |
Rotation Center Deflection Accuracy | 0.03 mm |
Max Velocity | 10°/sec |
Repeatability | ±3″ |
Absolute Accuracy | ±8″ |
Backlash | ±3″ |
Lost Motion | 2″ |
Parameters of Manual Rotaty Stage :
Item Number | PX110-200 | |
Structure Specifications | Rotation Range | 360° |
Diameter of Platform | φ200mm | |
Worm Gear Ratio | 180 : 1or 90：1or 45:1(Choose one of the three) | |
Drive Mechanism | Worm Gear | |
Travel Guide | Bearing | |
Material – Finish | Aluminum Alloy - Black-Anodized | |
Load Capacity | 55kg | |
Weight | 7.9kg | |
Accuracy Specifications | Design Resolution | 0.01°=36”, Non-MS Driver; 0.0005°=1.8”, 20MS Driver |
Rotational Velocity (Max) | 25°/sec | |
Repeatability | 0.005°=18″ | |
Absolute On-Axis Accuracy | 0.01°=36″ | |
Run-Out of Top Plate | 15μ | |
Backlash | 0.005°=18″ | |
Eccentricity | 20μ | |
Lost Motion | 0.005°=18″ | |
Parallelization | 100μ | |
