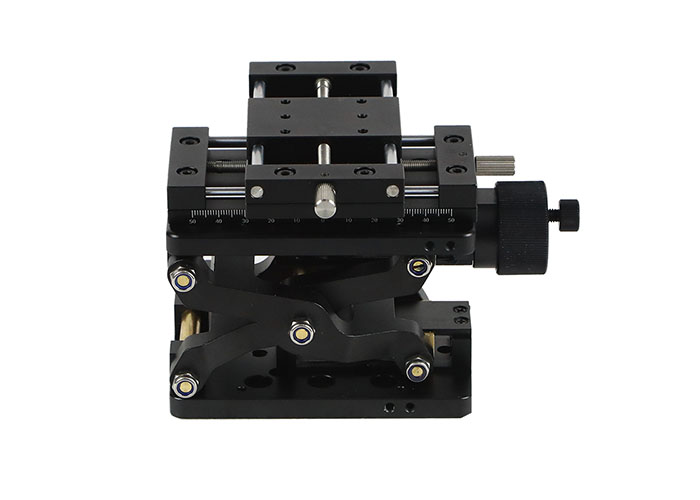

The Z-axis is the manual lifting platform PT-SD408, and the X-axis and Y-axis can move the translation platform PT-SS50 or PT-SS80.
Product details:Manual Lab Jack PT-SD408
Model Number | PT-SD408 |
Platform Size | 120 mm×80mm |
Drive Mechanism | Fine Grinding Lead Screw Drive |
Lift Trip | 60 mm |
Adjustment | 5μ |
Load Capacity | 20kg |
Weight | 1.15kg |
Material | Aluminum Alloy |
Surface Treatment | Black-Anodized |
Manual Linear Stage PT-SS50, PT-SS80
Model Number | PT-SS50 | PT-SS80 |
Guide shaft material | AL6063 | AL6063 |
Guide shaft hardness | HRC56~ | HRC56~ |
Knob material | 1Cr18Ni9(303) stainless steel | 1Cr18Ni9(303) stainless steel |
Feed screw material | 0Cr18Ni9(304) stainless steel | 0Cr18Ni9(304) stainless steel |
Trip | 50mm | 80mm |
Platform size | 40*60 | 40*60 |
Displacement Of The Knob By One Turn | 0.8mm | 0.8mm |
Surface Treatment | Black-Anodized | Black-Anodizeda |
| Weight(kg） | 0.28 | 0.3 |
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
