Product Name: Small XYZ Three-axis Manual Displacement Stage XY-axis Travel 100mm Z-axis 120mm

Share
Specification:

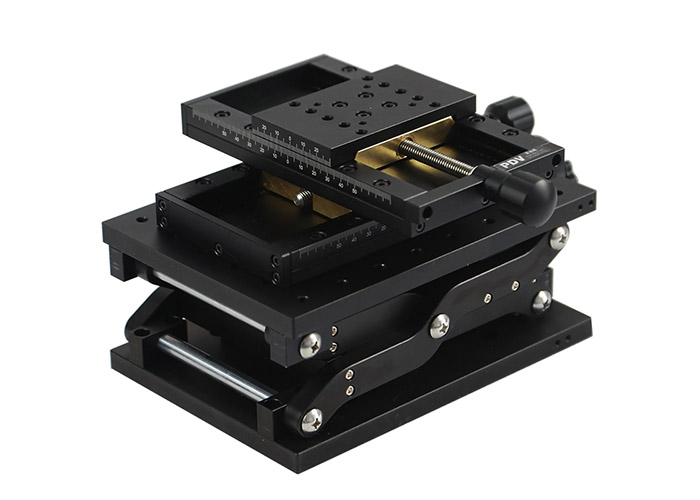

This manual three-dimensional platform consists of two manual linear stages PT-SD102P (travel 100mm) and one manual lab jack PT-SD412 (travel 120mm).

Product details:

Manual Lab Jack PT-SD412

Model

PT-SD412

Platform size

210mm×150mm

Driving mode

Fine grinding lead screw drive

Lifting stroke

120mm

adjustment

10μ

load bearing

30kg

Dead weight

3.8kg

Material Science

6061 duralumin

Surface treatment

Anodizing blackening

PT-SD412 precision manual lifting table, manual lifting table, manual displacement table, lifting slide table

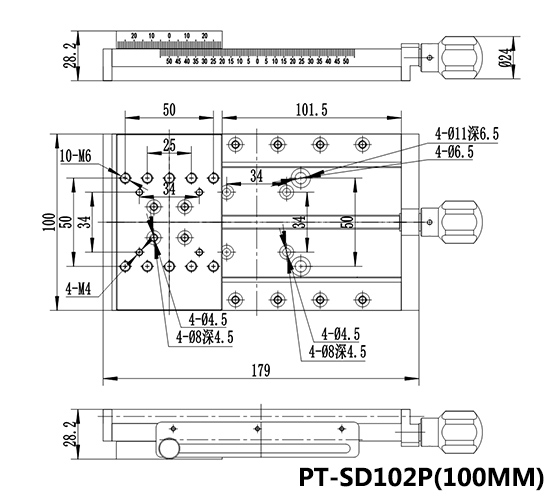

Manual Linear Stage PT-SD102P(100mm)

Model Number

PT-SD102P(100MM)

Travel

100mm

Drive Mode

Grinding Lead   Screw

Drive Position

Central Drive

Platform Size

100mm×60mm

Straightness

30μ

Table Parallelism

50μ

Motion Parallelism

40μ

Scale

0.1

Adjustment

Guide Rail   Form

Finely Researched   Dovetail Pair

Load Bearing

12.5kg

Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.

 PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

If our standard doesn't meet your needs, you can customize it.
