Product Name: PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis

Inquire Now Next Product
Share
Specification:

Product parameters:

Model numberPT-21R100
Displacement table size125×125mm
journeyX axis: ±15mm Y axis: ±15mm
load-bearing20kgf（196N）
Weight (kg)2
Outbound productXY21-125L


Rotating table sizeφ100
reading34"/ turn
journeyCoarse adjustment 360° Fine adjustment ±5°
railDouble bearing
load-bearing5kgf（49N）
parallelism20μm
eccentricity50μm
Be self-possessed0.68
Material surface treatmentAluminum-black anodized treatment
Outbound productR100


Product details:

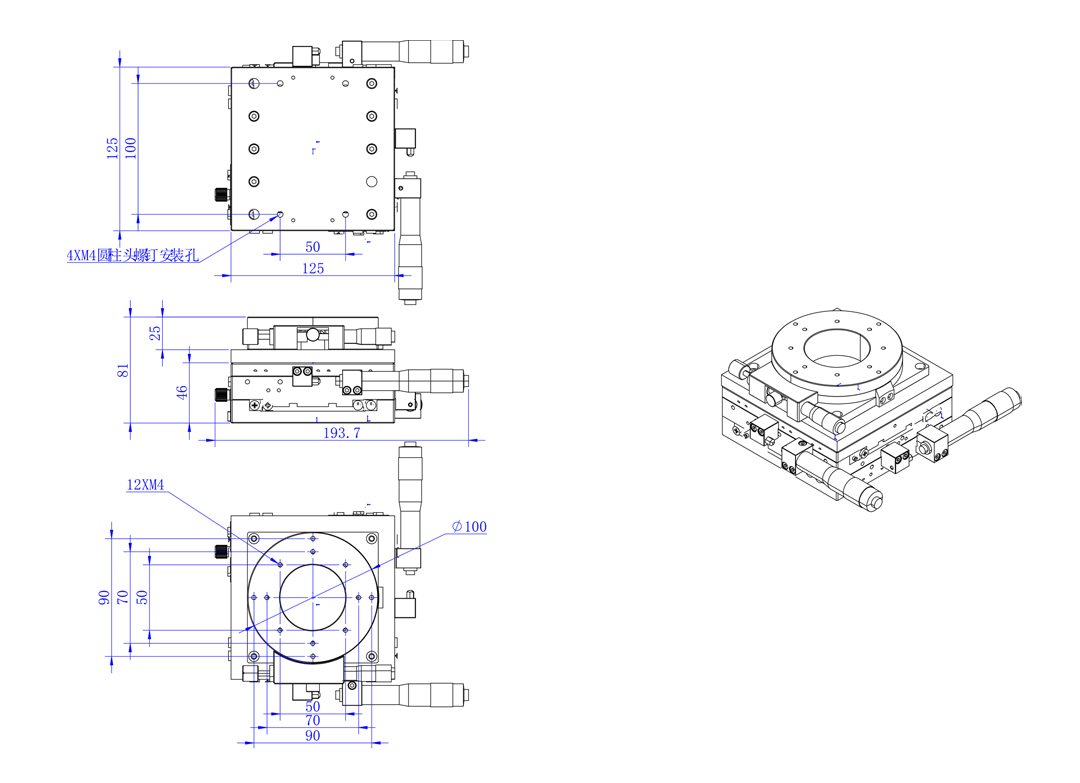

Product size:

PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis

Service:
PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
  • PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
  • PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
  • PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
  • PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
PT-21R100 manual 3D displacement table 36 degrees rotary table coarse fine adjustment slide XY axis
FAQ:
1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1
2 Q: The displacement table has a remote and proximal limit switch.
3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.
4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.
stepper motor. Step motor drive card is purchased separately.
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
