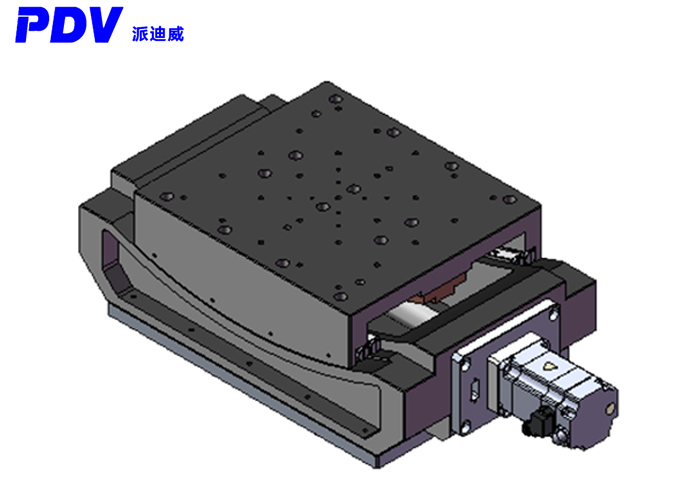

The main material of electric swing slide is hard aluminum alloy
Surface black anodized treatment, elegant appearance, beautiful
Driven by precision worm gear and guided by curved V-shaped guide rail
High strength, strong load capacity, good durability
Product parameters:
| Product model | PT-GD309 (Stepping) | PT-GD309 (Servo) |
| Table size (mm) | 250 X 340 | 250 X 340 |
| Angular range (.) | ±15° | ±15° |
| Overall height (mm) | 155±0.1 | 155±0.1 |
| Worm gear spiral transmission ratio | 36.25069444 | 36.25069444 |
| Guide rail | Curved V-shaped ball guide | Curved V-shaped ball guide |
| Worm gear material | Orichalcum | Orichalcum |
| Worm material and technology | Steel, high frequency hardening | Steel, high frequency hardening |
| Bulk material | Aluminium alloy, black anodized | Aluminium alloy, black anodized |
| Weight (Kg) | 30 | 30 |
| Coupling (OD - bore, bore 2) (mm) | 30-B35-10 | 30-B35-10 |
| Step rate (") | 7.45 | 7.45 |
| 8 Resolution under subdivision (") | 8.93 | 8.93 |
| Maximum speed | 4.1 | 4.1 |
| Motor and step Angle (.) | 2-phase 57 stepper motor, 1.8 | 400W servo motor |
| Motor type | 57BYG250CII | Panasonic |
| Operating current (A) | 2.4 | 2.4 |
| Motor torque (Nm) | 1.72 | 1.72 |
| Drive make and model (additional) | Recy 542 | Servo driver |
| Slide joint | DB9 (needle) | DB9 (needle) |
| Horizontal negative cut (Kg) | 50 | 50 |
Product size:
