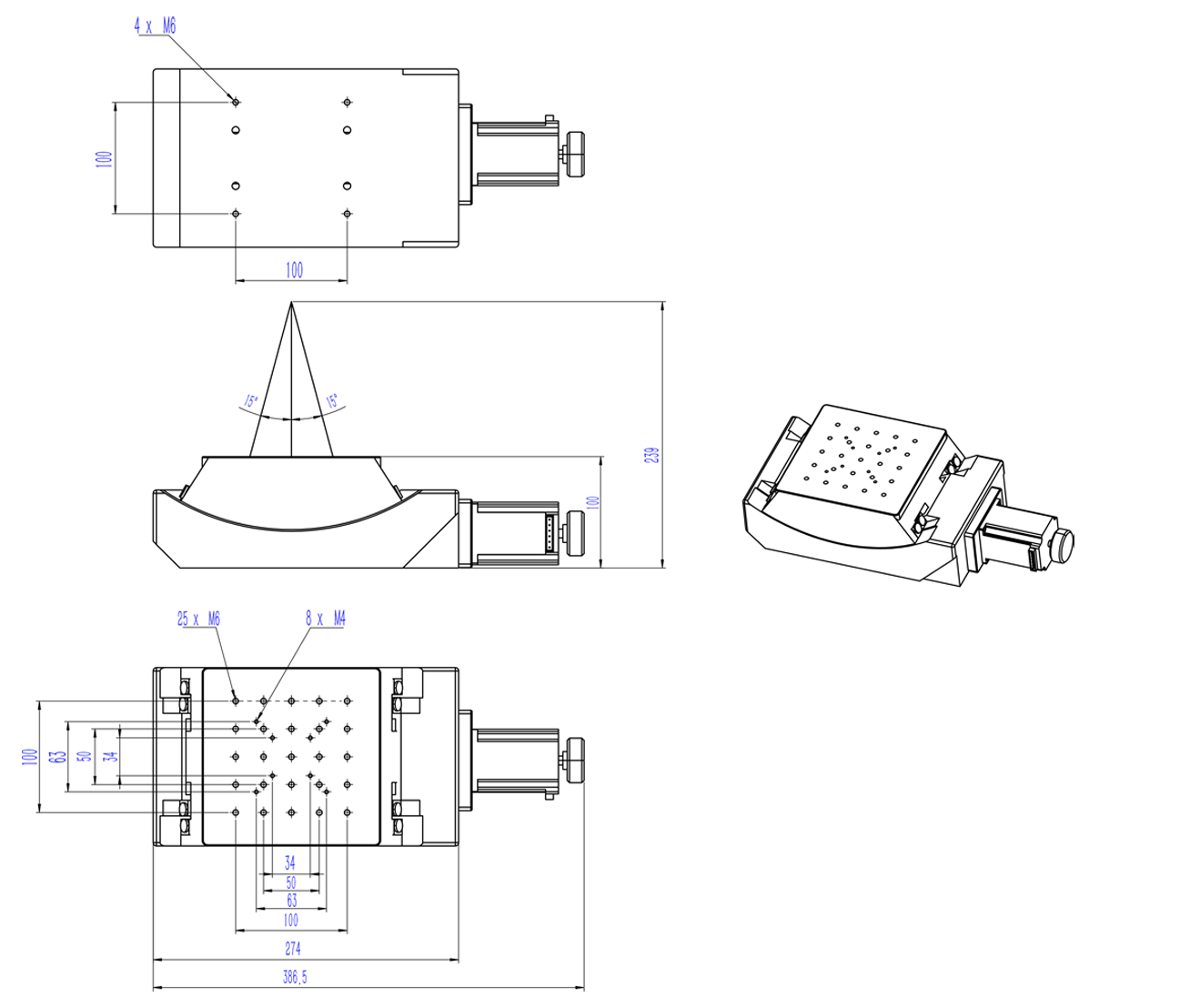

Structure Specifications
Item Number: PT-GD304
Rotation Range: ±15°
Platform: 160mm × 160mm
Drive Mechanism: Worm Gear
Travel Guide: Crossed Roller Bearing
Worm Gear Ratio: 400 : 1
Height of Rotation Stage: 139 mm±0.2 mm
Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
Material – Finish: Aluminum Alloy - Black-Anodized
Load Capacity: 30Kg
Weight: 12kg
Accuracy Specifications
Design Resolution: ≈0.007°≈25″(Non-MS Driver); ≈1.3″(20MS Drive)
Rotation Center Deflection Accuracy: 0.03 mm
Max Velocity: 10°/sec
Repeatability: ±3”
Absolute Accuracy: ±8”
Backlash: ±3”
Lost Motion: 2″
