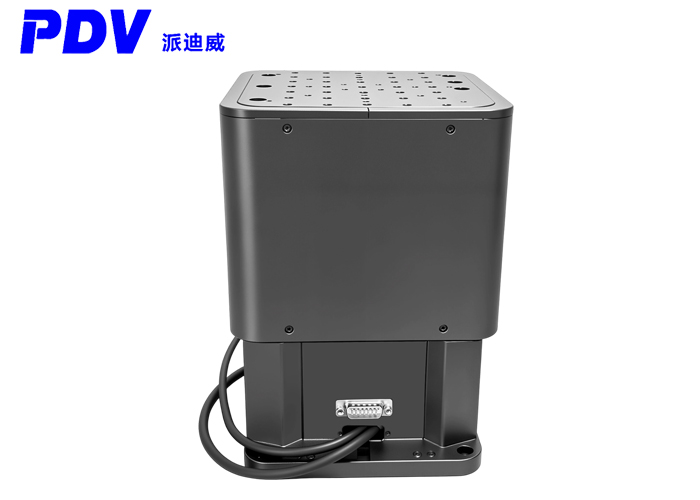

Structure Specifications
1 Item Number: PT-GD402
2 Travel Range: 110 mm
3 Dimension of Platform: 220mm x 140mm
4 Drive Mechanism: Grinding Screw
5 Travel Guide: Slide Rail
6 Stepper Motor (1.8°): SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material – Finish: Aluminum Alloy - Black-Anodized
8 Load Capacity: 10kgs
9 Weight: 6kgs
Accuracy Specifications
1 Adjust Distance: 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver
2 Velocity: 5mm/sec
3 Repeatability: 10μm
4 Backlash: 4μm
5 Lost Motion: 3μ
| product model | PT-GD402 | |
| Structural description | schedule | 120mm |
| Table size | 220mm*140mm | |
| Driving mechanism | Grinding screw pair | |
| Guide rail form | slide rail | |
| Stepping motor (1.8) | 57BYG | |
| Main material | aluminium alloy | |
| surface treatment | Anodic oxidation blackening | |
| Central bearing | 10kg | |
| weight | 6kg | |
| Precision description | Adjustment quantity | 5u（No subdivision） 0.25u（20subdivision） |
| speed | 5/sec | |
| Repetitive positioning accuracy | 10u | |
| Empty return | 4u | |
| Lose step | 3u | |
| Drop to a low altitude | 90mm | |
| Rise to high | 203mm | |
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
The products can be produced according to your needs if it don't meet your need.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
