We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
Product details:
Product features
New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurement system and so on .
Best-selling products
PDV offers high precision electric platform, high precision manual platform, optical plate, microscope bracket, long working distance objective, microscope lighting source, optical bench products for laboratory light path building.
we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.
Structure Specifications

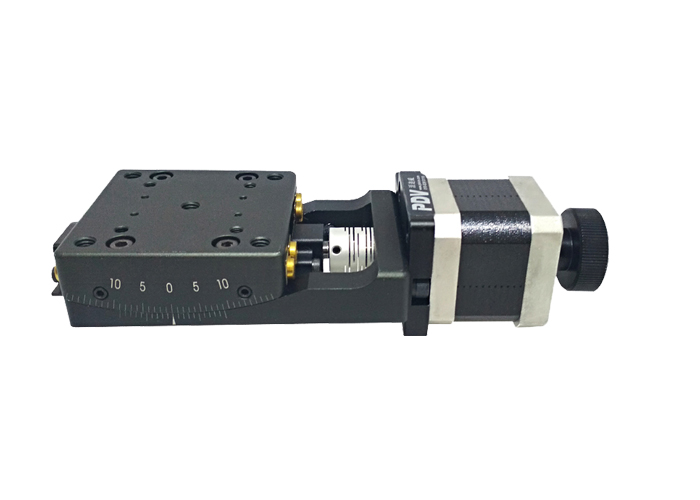

Item Number: PJ110-10
Rotation Range: ±10°
Platform: 65mm × 65mm
Drive Mechanism: Worm Gear
Travel Guide: Crossed Roller Bearing
Worm Gear Ratio: 352 : 1
Height of Rotation Stage: 75 mm±0.2 mm
Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
Material – Finish: Aluminum Alloy - Black-Anodized
Load Capacity: 5Kg
Weight: 0.75kg
Accuracy Specifications
Design Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive)
Rotation Center Deflection Accuracy: 0.03 mm
Max Velocity: 7°/sec
Repeatability: ±4”
Absolute Accuracy: ±9”
Backlash: ±4”
Lost Motion: 3″
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
