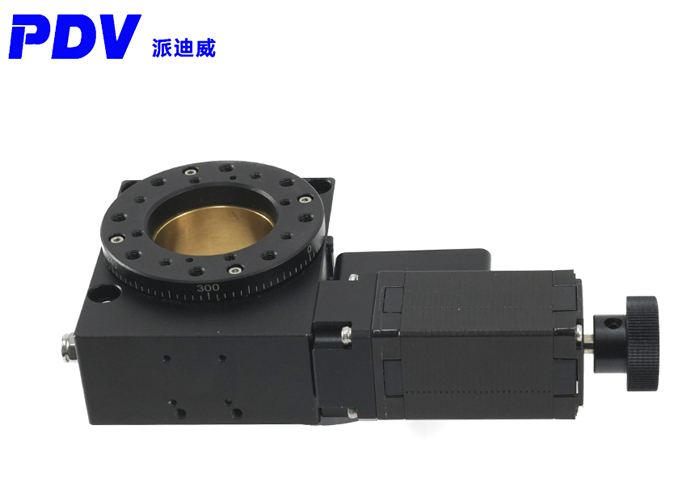

China PX-GD60 High precision electric rotary table Dividing disc - Rotation Stage, Motorized Rotation Stage, Precise Electric Rotating Machine Factory

Specification:

Model		PX-GD60
Mechanical specifications	Travel	360°
	Platform Size	φ59
	Transmission mode	Worm gear (reduction ratio 1 / 180)
	Guide	Deep groove ball bearing
	material	Aluminum black anodizing
	dead-weight	0.6kg
Accuracy specification	Resolution / pulse	0.004°
	Speed	15°/Second
	Unidirectional positioning speed	0.1°
	Repeatability accuracy	±0.01°
	Load Weight	3kgf
	Concentricity of motion	30μm
	Kinematic parallelism	30μm
Accuracy specification	Origin sensor	EE-SX4134
	Stepper motor	2-phase step, corner 1.8 °
	supply voltage	24V±10%
	control interface	DB9 Male connector

Product details:

PX-GD40 High precision electric rotary table Dividing disc

Service:

PX-GD60 High precision electric rotary table Dividing disc

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
