Product details:

Product parameter

Table size	350mm×350mm
X and Y axis travel	150mm
Driving mechanism	Fine grinding ball screw（lead 4 mm）
Guide form	Cross roller guide
Stepper motor (1.8°)	42BYGH47-1684
Bulk material	Aluminium alloy
Surface treatment	Anodizing black
Central load	50kg
weight	9.7kg
Resolution	20μ（No segmentation）1μ（20subdivide）
Maximum speed	30mm/sec
Repeated positioning accuracy	3μ
straightness	8μ
Parallelism of motion	20μ
Tilt	80″
runout	30″
Return clearance	5μ
Drop step	2µ

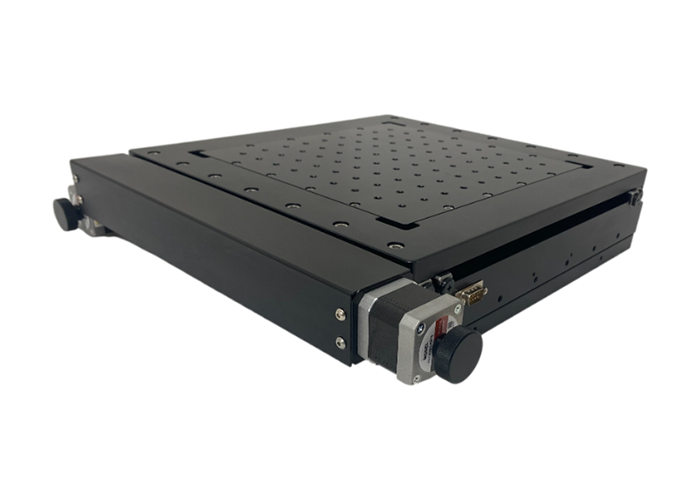

Electric two-dimensional integral translation table

Service:

Electric two-dimensional integral translation table PT-XY150

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
