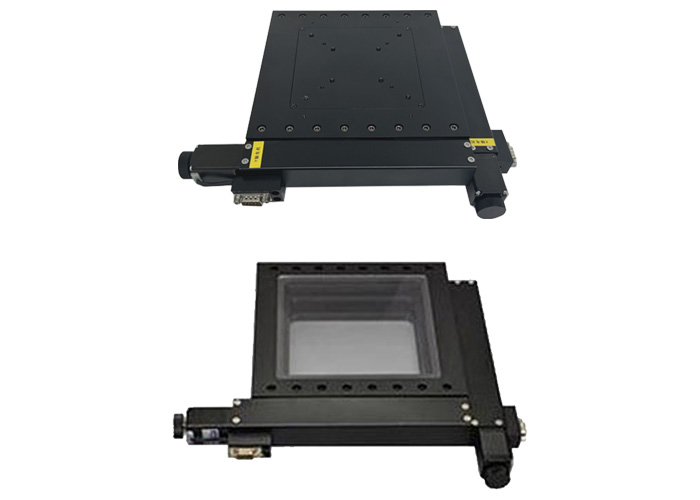

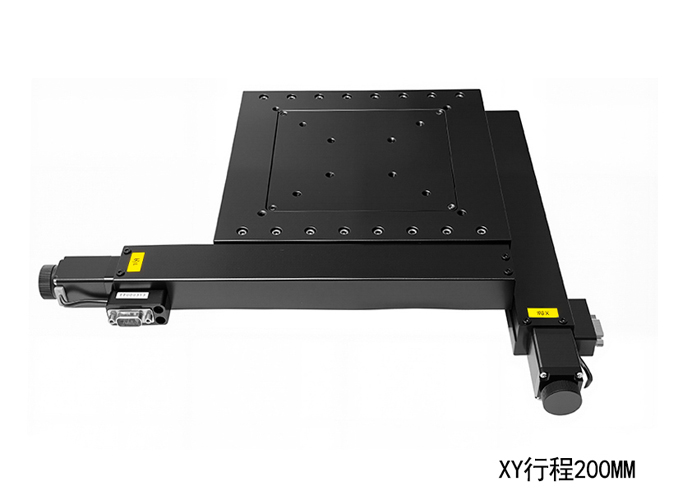

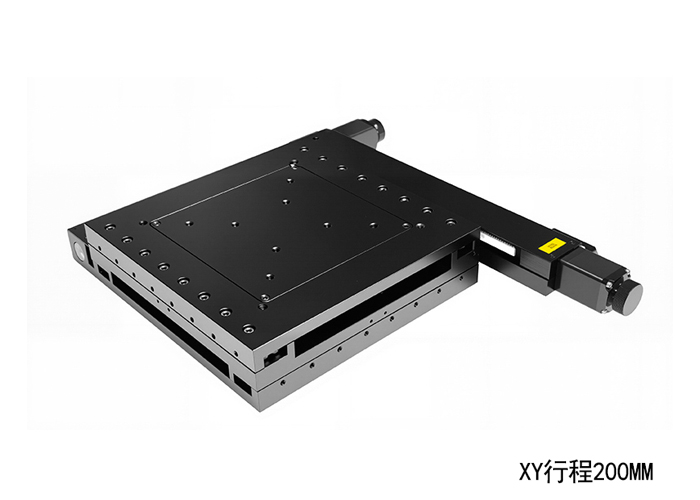

Product Description:
The mobile platform is driven by small ball screw, cross ball guide rail and micro stepping motor to achieve small size, wide load thickness, high precision and long life.
Suitable for precise movement of samples under the microscope.
Features: small size, thin thickness, good rigidity.
Places of use: microscope loads, ultra-thin two-dimensional translation places, other two-dimensional moving places.
Product parameter:
| Model number | PT-XY50G | PT-XY100G | PT-XY150G | PT-XY200G | PT-XY250G | PT-XY300G | ||||||
| Travel (mm) | 50×50 | 100×100 | 150×150 | 200×200 | 250×250 | 300×300 | ||||||
| Screw lead (mm) | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| Body material | Aluminium alloy | |||||||||||
| Surface treatment | Anodized black | |||||||||||
| rail | Cross roller guide | |||||||||||
| Speed (mm/s) | 15 | 15 | 15 | 15 | 15 | 15 | ||||||
| Resolution (8 subdivisions) (μm) | 1.25 | 0.1 | 1.25 | 0.1 | 1.25 | 0.1 | 1.25 | 0.1 | 1.25 | 0.1 | 1.25 | 0.1 |
| Repeated positioning accuracy (μm) | ±1 | ±0.5 | ±1 | ±0.5 | ±1 | ±0.5 | ±1 | ±0.5 | ±1 | ±0.6 | ±1 | ±0.6 |
| Drive motor | 28 step motor | |||||||||||
| Step Angle (°) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | ||||||
| Center load (kg) | 20 | 20 | 20 | 20 | 20 | 20 | ||||||
| Weight (kg) | 2.84 | 3.12 | 4.62 | 4.88 | 4.68 | 4.7 | 4.5 | 4.79 | 6.2 | 6.5 | 7.7 | 8 |
Product Size:
