Standard stepper motor and RS232 interface,
The motion controller independently developed by the company can realize automatic control;
The product structure is small and thin, suitable for use in light load, low speed, and scientific experiments; High quality fine grinding screw drive, small lead, the same fine fraction can achieve high resolution;
The clever design of empty return nut structure can minimize the clearance of grinding lead screw pair;
Precision square guide rail, comfortable movement, with the function of side adjusting the preload of the guide rail and eliminating the gap, can be used in multiple dimensions;
The pitch and deflection of the platform are greatly reduced by the fine grinding of the bottom plate and the reasonable fixing way of the guide rail, and the straightness and parallelism of the movement are greatly improved
Product parameters:

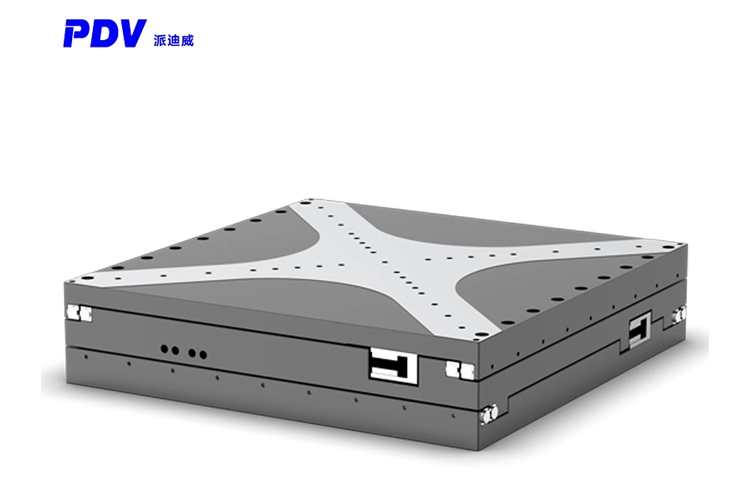

| Product model | PT-XY160 | |
| Structure description | X,Y axis travel | 20 mm |
| Table size | 320×320mm | |
| hollow | Ø160mm | |
| Screw specification | High precision ball screw (lead 1mm) | |
| rail | Square guide | |
| Stepper motor (1.8°) | STP-42D3016 | |
| Bulk material | Aluminium alloy | |
| Surface treatment | Anodized black | |
| Table load | 50 kg | |
| weight | 15kg | |
| Precision description | Resolution | 20μ (no subdivision) 1μ (20 subdivision) |
| Maximum speed | 10mm /sec | |
| Repeated positioning accuracy | 5μ | |
| Absolute positioning accuracy | 10μ | |
| straightness | 25μ | |
| Parallelism of motion | 30μ | |
| Tilt | 50″ | |
| runout | 25″ | |
| Return clearance | 2μ | |
| Drop step | 2μ | |
| Replaceable servo motor (D) | ||
Product size:
