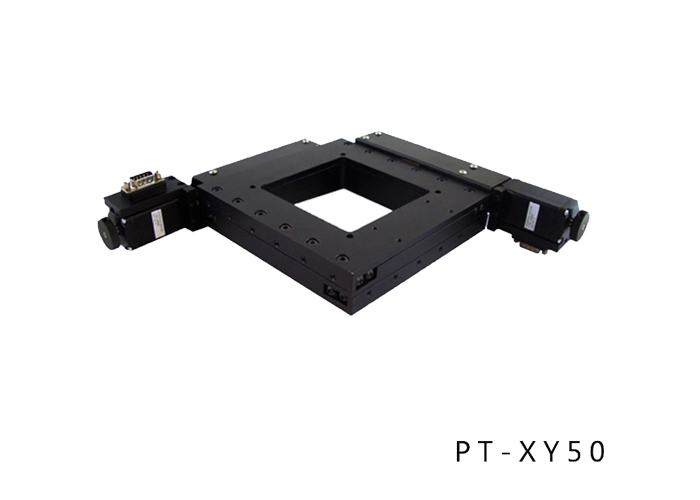

Product Name: PT-XY50 XY Motorized Microscope Stage

Share
Specification:




Item NumberPT-XY50
StructureTravel Range50mm
Platform150mm × 150mm
Bearing ConstructionHigh Precise Grinding Screw (1mm of leading)
Travel GuideCrossed Roller Bearing
Stepper Motor (1.8°)28STH51H-0674B
MaterialAluminum Alloy - Black-Anodized
Load Capacity10Kgs
Weight3.2Kgs
AccuracyDesign Resolution5μm/Pulse, Non-MS Driver0.25μm/Pulse, 20MS Driver
Velocity6mm/sec
Repeatability1.5μm
Absolute Accuracy5μm
Straightness5μm
Parallelization15μm
Pitching50"
Yawing25"
Backlash2μm
Lost Motion2μm
OthersScales (-G), Servo Motor (-D)

PT-XY50 XY Motorized Microscope Stage


New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurement system and so on .

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.


Product details:
Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.



Service:
PT-XY50 XY Motorized Microscope Stage
  • PT-XY50 XY Motorized Microscope Stage
  • PT-XY50 XY Motorized Microscope Stage
  • PT-XY50 XY Motorized Microscope Stage
  • PT-XY50 XY Motorized Microscope Stage
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
PT-XY50 XY Motorized Microscope Stage
PT-XY50 XY Motorized Microscope Stage
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
