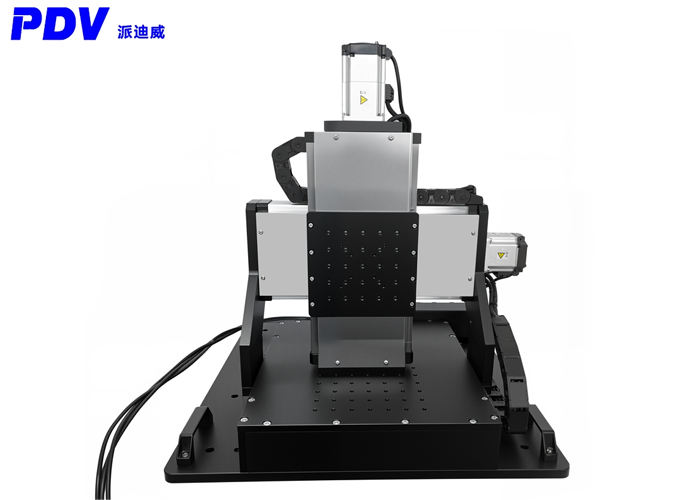

Product Introduction:
Three-axis displacement table is a kind of precision displacement adjustment equipment, which is widely used in optical, mechanical, electronic and other fields. There are a variety of specifications of three-axis displacement platform, such as XYZ axis vertical lifting platform, XYZ axis precision fine-tuning platform, to meet the needs of different application scenarios. Three-axis displacement table is widely used in optical fine-tuning movement, mechanical displacement adjustment, electronic equipment detection, etc. It is an important precision adjustment equipment. Comprehensive performance : line rail model with precision roller 絏 rail, both high rigidity heavy cutting and high precision machining comprehensive performance, with direct high-speed spindle, precision mold, machining effect is very good. It can be matched with various types of additional milling heads, customized fixture heads, and optional combinations to provide automatic pentahedral and vertical double-output pentahedral models to meet various processing needs.
Product parameters:
| Product model | PT-DD100XYZ | |
| Structure description | Z-axis work surface | 150×150 |
| X, Y, Z travel | 100mm | |
| X, Y Panasonic servo motor | 200W | |
| Z Matsushita holding servo motor | 200W | |
| rail | High precision linear slider guide | |
| Material surface treatment | Aluminum-black anodized treatment | |
| load | ≤10kg | |
| Be self-possessed | 50kg | |
| Precision description | speed | ≤30mm/sec |
| Repeated positioning accuracy | ±3μ | |
| Absolute positioning accuracy | 15μ | |
| parallelism | 30μm | |
| Parallelism of motion | 10μm | |
| Attachment description | Z-axis can be customized with a variety of clamping fixtures (customized on demand) | |
| The controller can add the dispensing function | ||
| Grating ruler can be added | ||
Product size:
