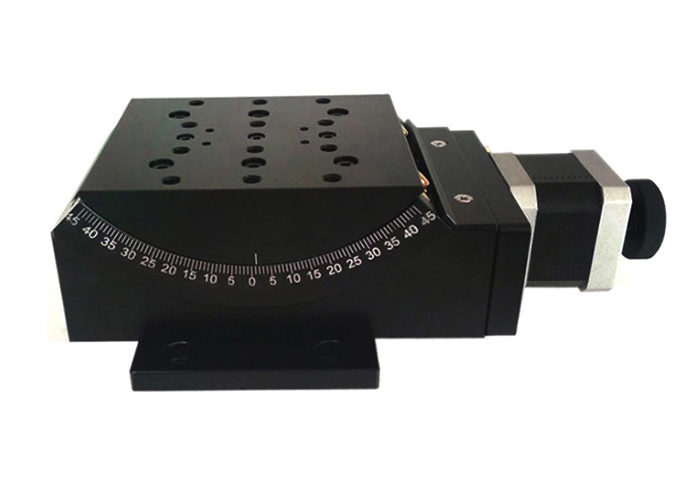

The motorized goniometer stage can rotate and tilt the optical devices fixed on it. The two tables are designed in pairs, compact in structure and can be superimposed, and can be used alone. The two kinds of rotation radii are carefully designed, and can rotate around a common point in two dimensions after superimposition. It is driven by a worm gear pair, which is precise and reliable, and the handwheel is locked and positioned and prevented from falling off.
Product features and advantages of motorized goniometer stage:
1. The standard is equipped with stepping motor and standard DB9 interface, which can realize automatic control with the motion controller of our company.
2. The electric angle table can provide rotation angle adjustment.
3. The mounting surface is placed horizontally to facilitate installation and fixation.
4. In pair design, the rotation center is the same point after superposition, which can be adjusted by orthogonal two axis concentric rotation5. The worm gear pair is driven, and the guide rail is an annular ball with an annular steel guide rail, which is comfortable, precise and reliable.
6. Stepper motor and worm are connected by imported high-quality elastic coupling, with synchronous transmission and low noise.
7. The motorized goniometer stage is equipped with limit switch, which is convenient for positioning, protecting products, and adding photoelectric zero position.
Beijing PDV Instrument Co., Ltd. specializes in R&D and manufacturing of optoelectronic instruments. At present, PDV products have been widely used in universities, scientific research institutes and related industries, involving many fields such as physics, chemistry, new materials, new energy, environmental protection, biology, meteorology, aviation and aerospace.
