A long working distance objective with an infinite conjugated parfocal distance of 95mm
The color difference of visible spectral region is corrected, and the machining surface can be observed coaxial with the laser beam
It can be used for 532nm, 1030-1064nm laser processing
The corresponding cover glass thickness is t=0, t=0.7, t=1.1, which can be achieved by replacing the corresponding protective mirror base
specification:
| product name | Article number | Numerical aperture | Working distance | Focal length | Resolution | Focal depth | Objective feld number（mm） | weight | |
| NA | WD（mm） | f(mm) | R（um） | ±D.F（um) | ø24eyepiece | 1”camera | （g） | ||
| LCD Plan Apo NIR 20X（t0) | 0310-9020-1000 | 0.4 | 20 | 10 | 0.7 | 1.7 | 1.2 | 0.48×0.64 | 260 |
| LCD Plan Apo NIR 20X（t0.7) | 0310-9020-1070 | 0.4 | 20 | 10 | 0.7 | 1.7 | 1.2 | 0.48×0.64 | 259 |
| LCD Plan Apo NIR 20X（t1.1) | 0310-9020-1110 | 0.4 | 20 | 10 | 0.7 | 1.7 | 1.2 | 0.48×0.64 | 258 |
| LCD Plan Apo NIR 50X（t0) | 0310-9050-1000 | 0.45 | 15 | 4 | 0.6 | 1.4 | 0.48 | 0.19×0.26 | 300 |
| LCD Plan Apo NIR 50X（t0.7) | 0310-9050-1070 | 0.45 | 15 | 4 | 0.6 | 1.4 | 0.48 | 0.19×0.26 | 299 |
| LCD Plan Apo NIR 50X（t1.1) | 0310-9050-1110 | 0.45 | 15 | 4 | 0.6 | 1.4 | 0.48 | 0.19×0.26 | 298 |
* Resolution and objective focal depth are calculated based on the reference wavelength λ=550nm

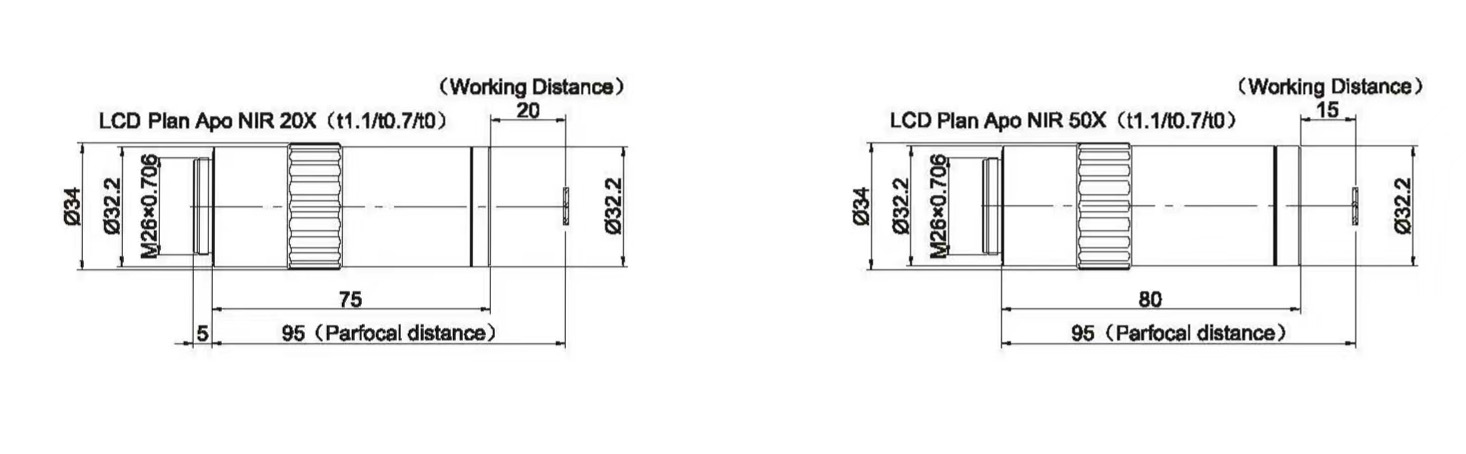

Product details:Exterior dimensional drawing:
