| HY-2C | 2X NIR 95mm Objective | 2x Plan Apochromatic objective,W.D.34.6mm,focal length 100mm,N.A.0.055,FOV12.5mm(φ15eyepiece),resolution 5μm，cover depth:0mm,wavelength 400-1064nm,focus±△p（μm)90.9μm，visual field(HXV):4.4X3.3mm(2/3"CCD);3.2X2.4mm(1/2"CCD) |
| HY-5C | 5X NIR 96mm Objective | 5x Plan Apochromatic objective,W.D.44.6mm,focal length 40mm,N.A.0.13,FOV5mm(φ6eyepiece),resolution 2.1μm，cover depth:0mm,wavelength 400-1064nm,focus±△p（μm)16.27μm，visual field(HXV):1.8X1.32mm(2/3"CCD);1.28X0.96mm(1/2"CCD) |

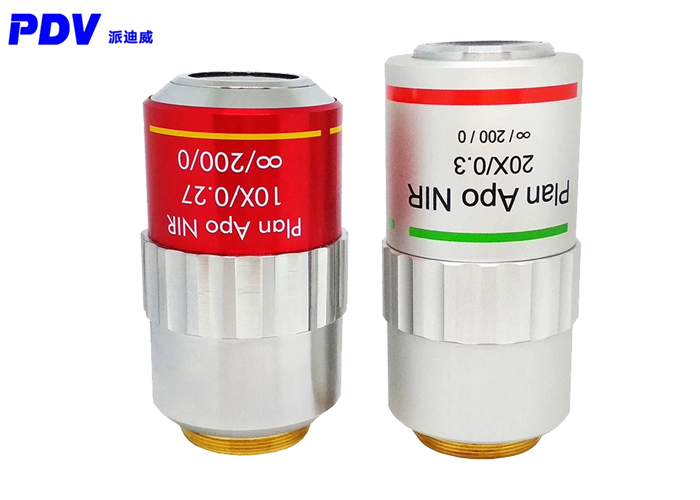

| HY-10C | 10X NIR 97mm Objective | 10x Plan Apochromatic objective,W.D.34mm,focal length 20mm,N.A.0.8,FOV2.5mm,resolution 0.98μm，cover depth:0mm,wavelength 400-1064nm,focus±△p（μm)13.51μm，visual field(HXV):0.88X0.66mm(2/3"CCD);0.64X0.48mm(1/2"CCD) |
| HY-20C | 20X NIR 98mm Objective | 20x Plan Apochromatic objective,W.D.31mm,focal length 10mm,N.A.0.29,FOV1.25mm,resolution 0.95μm，cover depth:0mm,wavelength 400-1064nm,focus±△p（μm)3.271μm，visual field(HXV):0.44X0.33mm(2/3"CCD);0.32X0.24mm(1/2"CCD) |
| HY-50C | 50X NIR 99mm Objective | 50x Plan Apochromatic objective,W.D.10mm,focal length 4mm,N.A.0.67,FOV0.5mm,resolution 0.41μm，cover depth:1.8mm,wavelength 450-1340nm,focus±△p（μm)0611μm，visual field(HXV):0.18X0.13mm(2/3"CCD);0.13X0.10mm(1/2"CCD) |
| HY-20D | 20X NIR 100mm Objective | 20x Plan Apochromatic objective,W.D.17.4mm,focal length 10mm,N.A.0.45,FOVφ1.2mm(φ24eyepiece),resolution0.61μm，depth of focus 1.36μm，visual field(HXV):0.24x0.32mm(1/2"CCD),transmittance 450nm~700nm>70%,770-790nm>90% More than ，achromatic wavelength 780nm |
| HY-50D | 50X NIR 101mm Objective | 50x Plan Apochromatic objective,W.D.4.04mm,focal length 4mm,N.A.0.8,depth of focus 0.43μm,FOVφ0.48mm(φ24eyepiece),resolution0.34μm，visual field(HxV):0.10x0.13mm(1/2"CCD),transmittance 450nm~700nm>70%,770-790nm>90%，achromatic wavelength 780nm |
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
