Product description

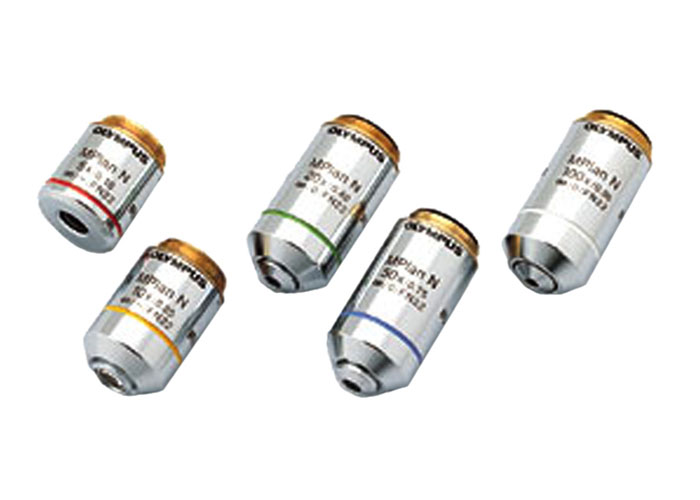

Objective lenses designed for brightfield microscopy applications
Plan achromat objective lenses provide excellent image flatness up throughout the field of view
Specifications
| Magnification [X] | 5 | 10 | 20 | 50 | 100 |
| Numerical aperture (NA) | 0.1 | 0.25 | 0.4 | 0.75 | 0.9 |
| Working distance (WD) [mm] | 20 | 10.6 | 1.3 | 0.38 | 0.21 |
| Objective Field Number | 22 | 22 | 22 | 22 | 22 |
| Immersion medium | Air/Dry | Air/Dry | Air/Dry | Air/Dry | Air/Dry |
| Spring loaded | N/A | N/A | Yes | Yes | Yes |
| Correction collar | N/A | N/A | N/A | N/A | N/A |
| Correction range of correction collar | N/A | N/A | N/A | N/A | N/A |
| Iris | N/A | N/A | N/A | N/A | N/A |
| Correction level of chromatic aberration | Achromat (ACH) | Achromat (ACH) | Achromat (ACH) | Achromat (ACH) | Achromat (ACH) |
| Parfocalizing distance [mm] | 45 | 45 | 45 | 45 | 45 |
| Back focal plane (BFP) position | - | - | - | - | - |
| Type of screw thread | W20.32X0.706(RMS) | W20.32X0.706(RMS) | W20.32X0.706(RMS) | W20.32X0.706(RMS) | W20.32X0.706(RMS) |
| Brightfield(Reflected) | Good | Good | Good | Good | Good |
| Brightfield(Transmitted) | Good | Good | Good | Good | Good |
| Darkfield(Reflected) | N/A | N/A | N/A | N/A | N/A |
| Darkfield(Transmitted) | N/A | N/A | N/A | N/A | N/A |
| DIC(Reflected) | N/A | N/A | N/A | N/A | N/A |
| DIC(Transmitted) | N/A | N/A | N/A | N/A | N/A |
| Phase Contrast | N/A | N/A | N/A | N/A | N/A |
| Relief Contrast | N/A | N/A | N/A | N/A | N/A |
| Polarized Light | N/A | N/A | N/A | N/A | N/A |
| Fluorescence (B, G Excitation) | N/A | N/A | N/A | N/A | N/A |
| UV Fluorescence (at 365nm) | N/A | N/A | N/A | N/A | N/A |
| Multiphoton | N/A | N/A | N/A | N/A | N/A |
| TIRF | N/A | N/A | N/A | N/A | N/A |
| IR | N/A | N/A | N/A | N/A | N/A |
| WLI | N/A | N/A | N/A | N/A | N/A |
| Auto Focus | N/A | N/A | N/A | N/A | N/A |

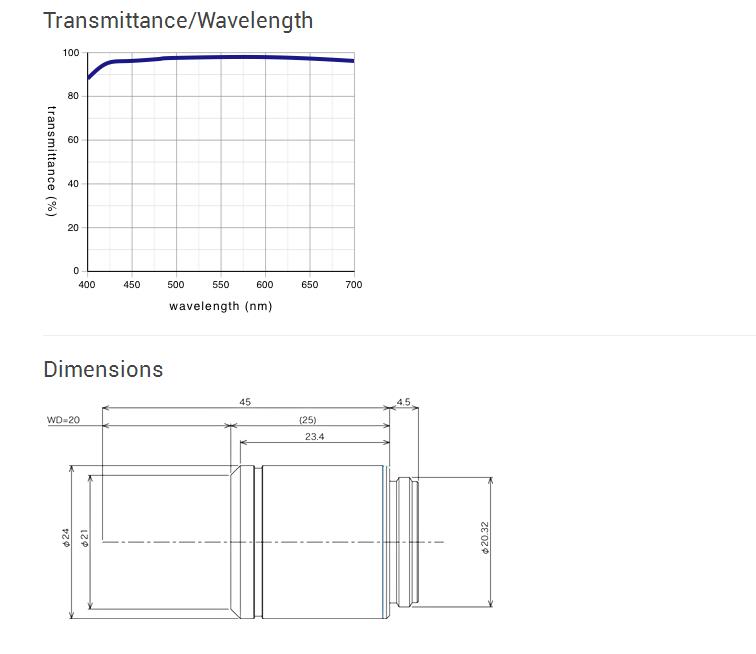

MPLN-5X:

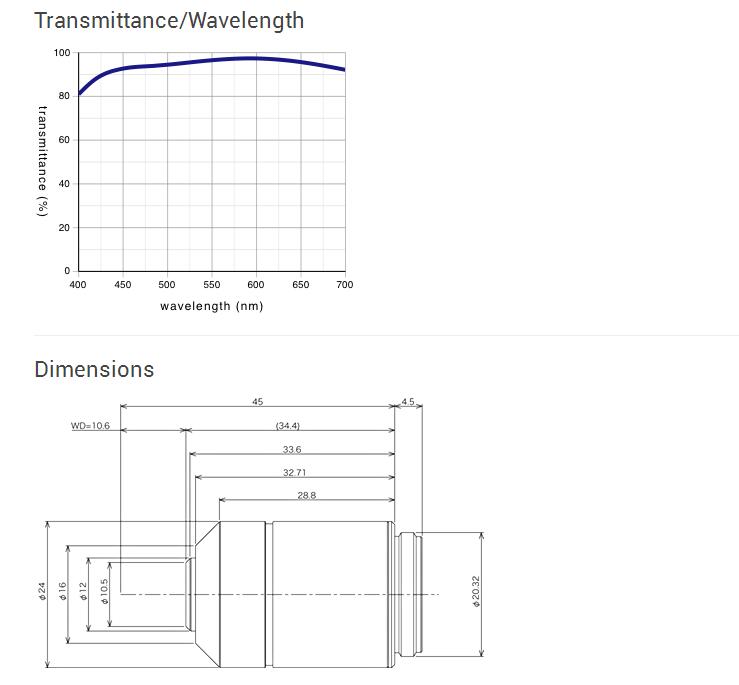

MPLN-10X:

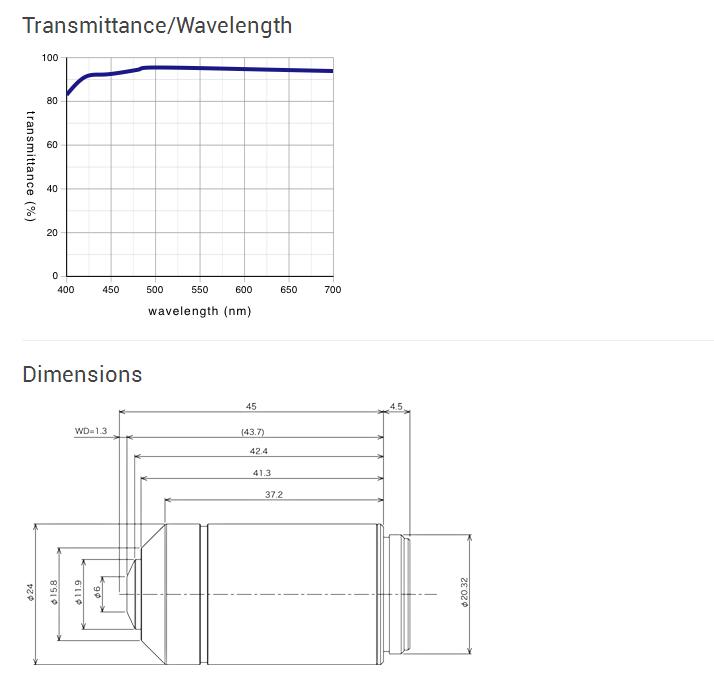

MPLN-20X:

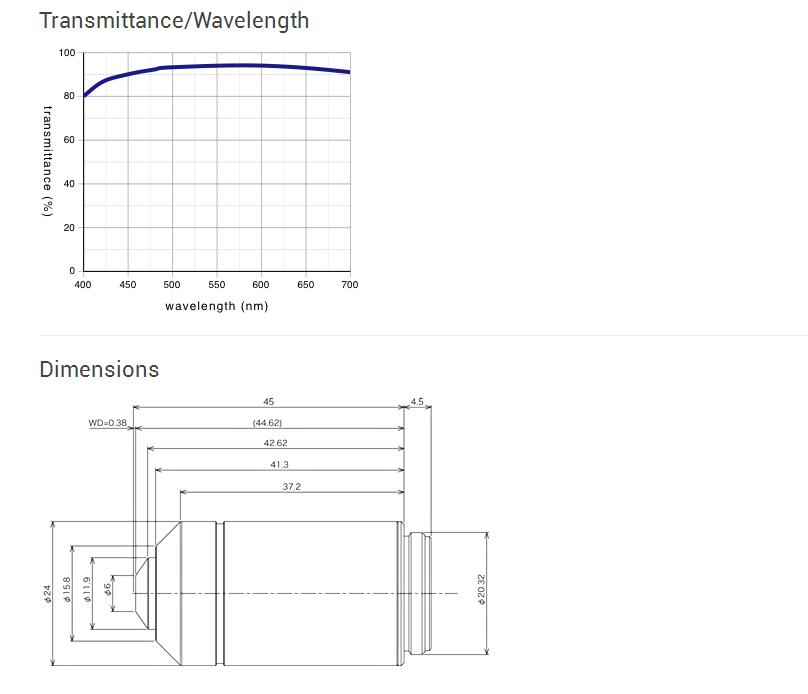

MPLN-50X:

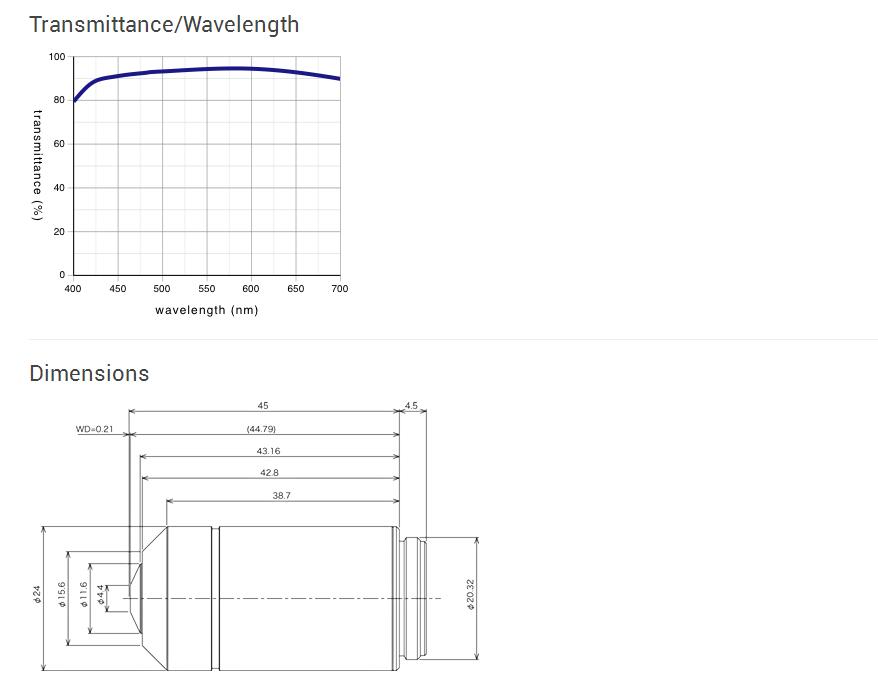

MPLN-100X:
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
