Model | PT-GX1013 | PT-GX1025 | |
| X(mm) | 13 | 25 |
Y(mm) | 13 | 25 | |
Z(mm) | 13 | 25 | |
θY(°) | ±3 | ±3 | |
θZ(°) | ±3 | ±3 | |
Guiding Mechanism | Linear Ball Guide + Rotating Mechanism | ||
Driving Mode | Micrometer + Thread Pair | ||
Weight(Kg) | 0.5 | ||

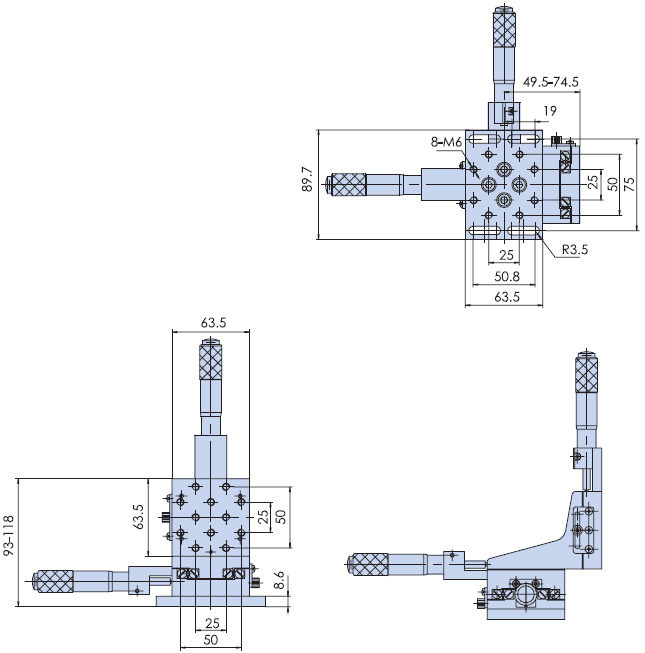

PT-GX1025 optical fiber special slide is composed of integral three-dimensional slide and two-dimensional inclined slide. It has compact structure and high cost performance. It is very suitable for optical fiber alignment of industrial customers. It is usually used in pairs with left and right hands.
