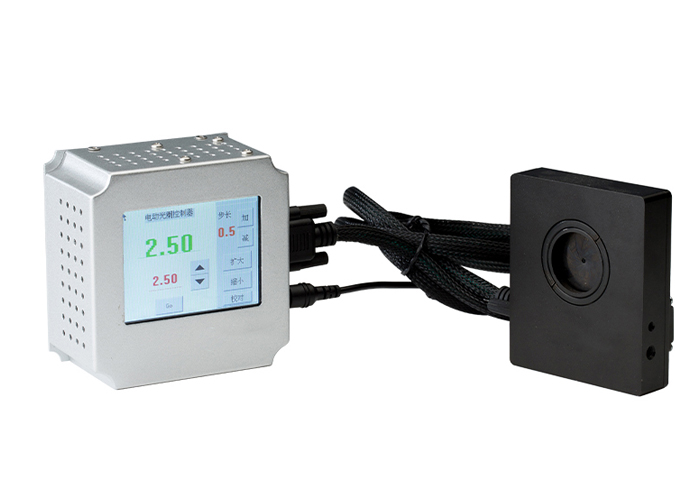

This product adopts a touch display controller, which can realize the continuous change of diaphragm diameter through the driver of the controller, and can also directly display the size of diaphragm diameter. If it is necessary to control the electronically controlled diaphragm online and configure (purchase separately) the standard product of our company, the control of this diaphragm can be realized by software in the computer, and several diaphragms can also be cascaded.
Operating voltage of controller: input: AC 100 v ~ 240 v output: DC 24 v 3a.
Travel: φ 2.5 ~ 28 mm.
Maximum frequency (max. frequency): 23.697khz.
Communication mode: can.
Max. Distance)：100.
Max. Dimensions)： 15.
Product parameter
| Model | PF06-28 |
| Aperture adjustment range | Φ2.5mm~28mm |
| deadweight | 0.5kg |
| Minimum opening and closing time | 8s |
| precision | ±0.5mm |
| minimum diameter | Φ2.5mm |
| Maximum diameter | Φ28mm |
Product Size
