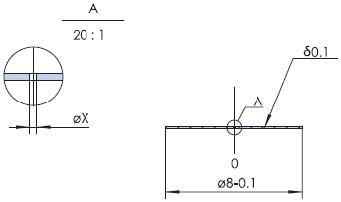

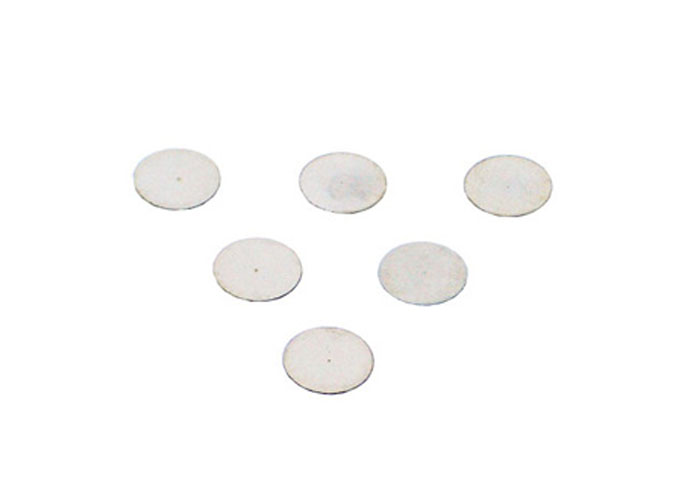

High-energy pinhole used to implement the light path Chinese super small point light source, such as a laser beam filtering, outer diameter phi 8 mm, thickness 0.08 mm, application of laser processing microporous technology, high machining accuracy, can provide the different diameter, with company series extension rod, rod frame, the base connection to use, light path system, can also with translation, electric displacement platform use collocation, make multidimensional adjustment.
Pinhole: PK01 - (5 ~ 100)
S pinhole ZK01 series according to different specifications of the pinhole aperture list as follows, X represents aperture, aperture unit to microns.
| 3 | 4 | 5 | 6 | 10 | 11 | 15 |
| 19 | 20 | 21 | 25 | 30 | 35 | 40 |
| 45 | 50 | 55 | 60 | 65 | 70 | 75 |
| 80 | 85 | 90 | 95 | 100 | 105 | 110 |
| 115 | 120 | 150 | 200 |
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
